Ovis

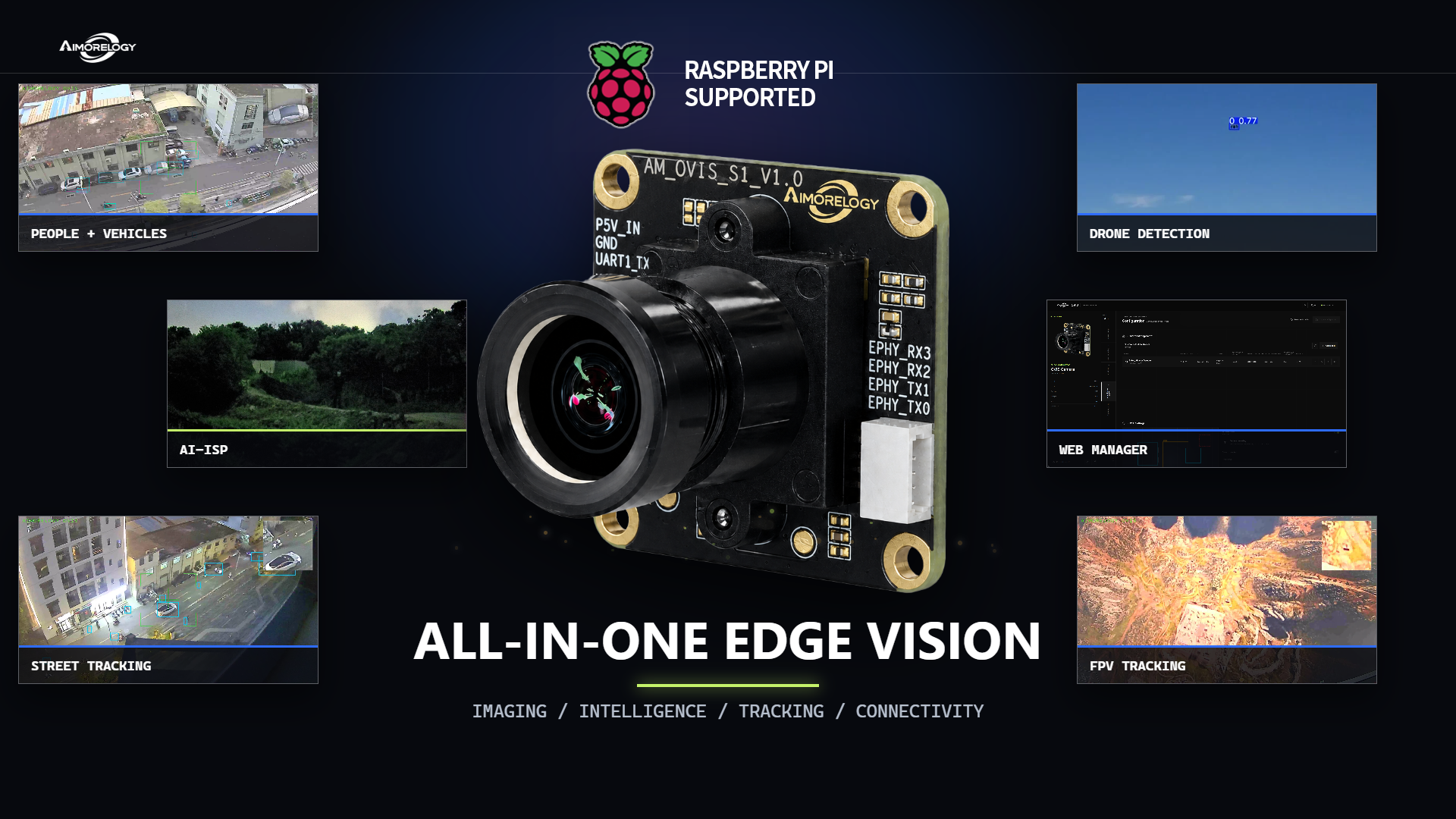

Ovis is a compact AI vision camera module from AIMORELOGY, powered by the CVITEK CV1842H-P SoC and a built-in 1.5 TOPS INT8 TPU with BF16 support. It offers two selectable operating modes: AI-ISP full-color night vision, which enhances low-light video at up to 1080p @ 30fps, and onboard AI inference, which runs supported vision models directly on the module. With browser-based no-code configuration, USB and Ethernet video output, and UART connectivity, Ovis can serve as a low-light video front-end for hosts such as Raspberry Pi and PCs, or as a standalone edge AI module. Its compact modular stacked design supports integration into drones, robots, security systems, and custom embedded vision products, with support for secondary development and custom carrier boards.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | Ovis |
| Positioning | 1.5 TOPS AI-ISP Night Vision Camera Module |
| SoC | CVITEK CV1842H-P |
| CPU | ARM Cortex-A53 @ 1.1 GHz + RISC-V C906 @ 800 MHz |
| AI Performance | 1.5 TOPS @ INT8, BF16 supported |
| AI-ISP | Real-time 1080p @ 30fps full-color night vision |
| Vision Modes | AI-ISP night vision / Onboard AI inference |
| AI Workflows | YOLO, ResNet50 v2, MobileNet v2, vehicle recognition, human recognition, and pose recognition |
| Configuration | Browser-based no-code configuration |
| Interfaces | USB / Ethernet / UART |
| Host Support | Windows, macOS, Linux, Raspberry Pi, Radxa, Orange Pi, and Linux SBCs |
| Open Resources | Hardware design files, structural files, software source code, and documentation |
| Development | Secondary development and custom carrier board design supported |
| Structure | Ultra-compact modular stacked design |
| Applications | Drones, robotics, security, edge AI, embedded vision, and smart cameras |
| Ovis Core Dimensions | 20 x 20 x 5.7 mm |
| Standard Kit Dimensions (with Lens) | 28 x 28 x 31.7 mm |
Hardware and Interfaces

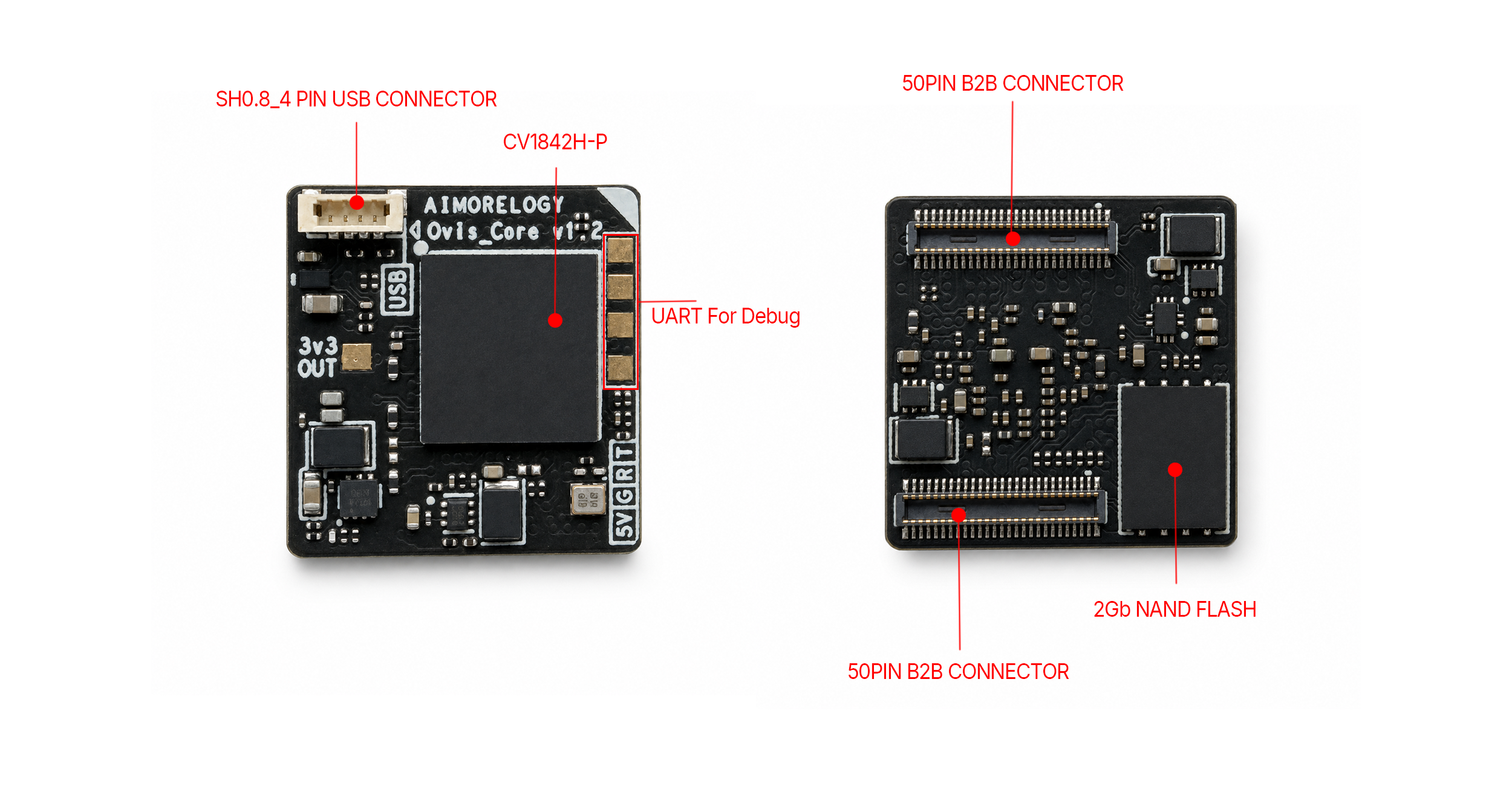

Ovis Core
The core board integrates the CV1842H-P SoC and 2 Gb NAND flash, with a USB connector, UART debug pads, and two 50-pin board-to-board connectors.

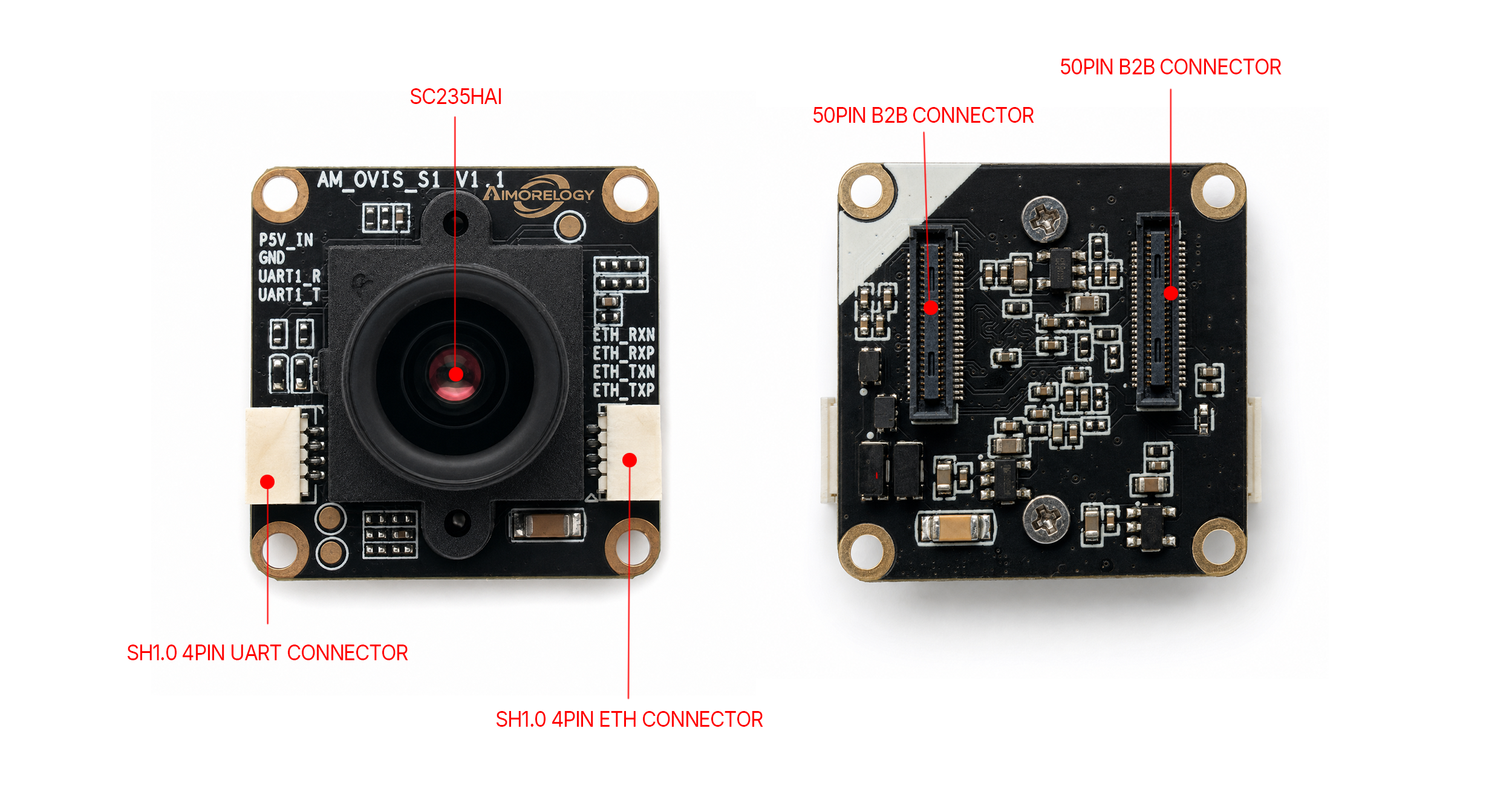

Sensor Board
The sensor board uses the SC235HAI image sensor and provides UART and Ethernet connectors, plus two 50-pin board-to-board connectors.

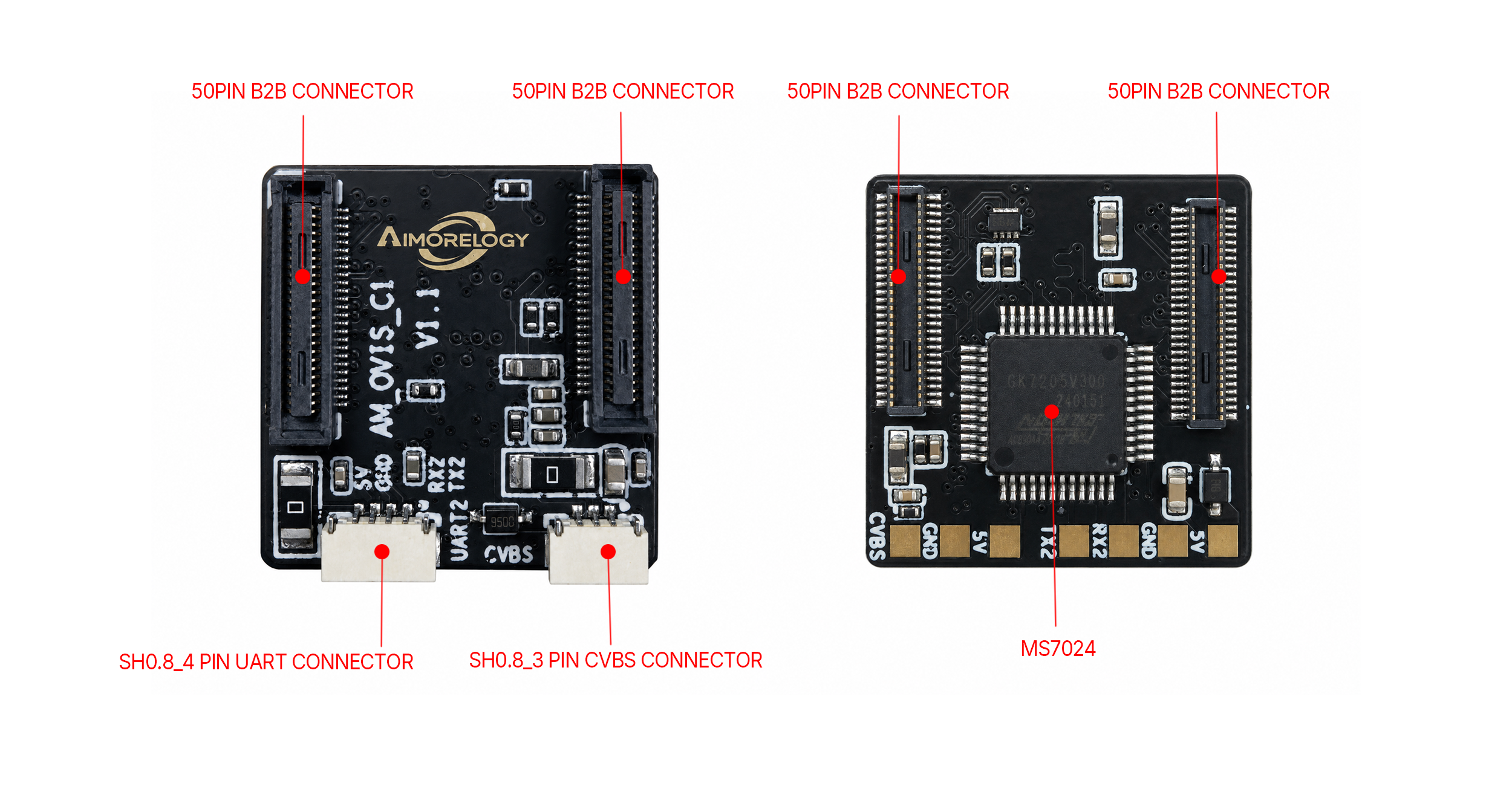

CVBS Output Board
The CVBS output board uses the MS7024 and provides UART and CVBS connectors, with 50-pin board-to-board connectors on both sides for stacking. This board is included in the CVBS Kit.
