3. Running InstructionsΒΆ

  1. After burning is complete, turn off the power and wait 1-2 seconds for the capacitors to discharge.

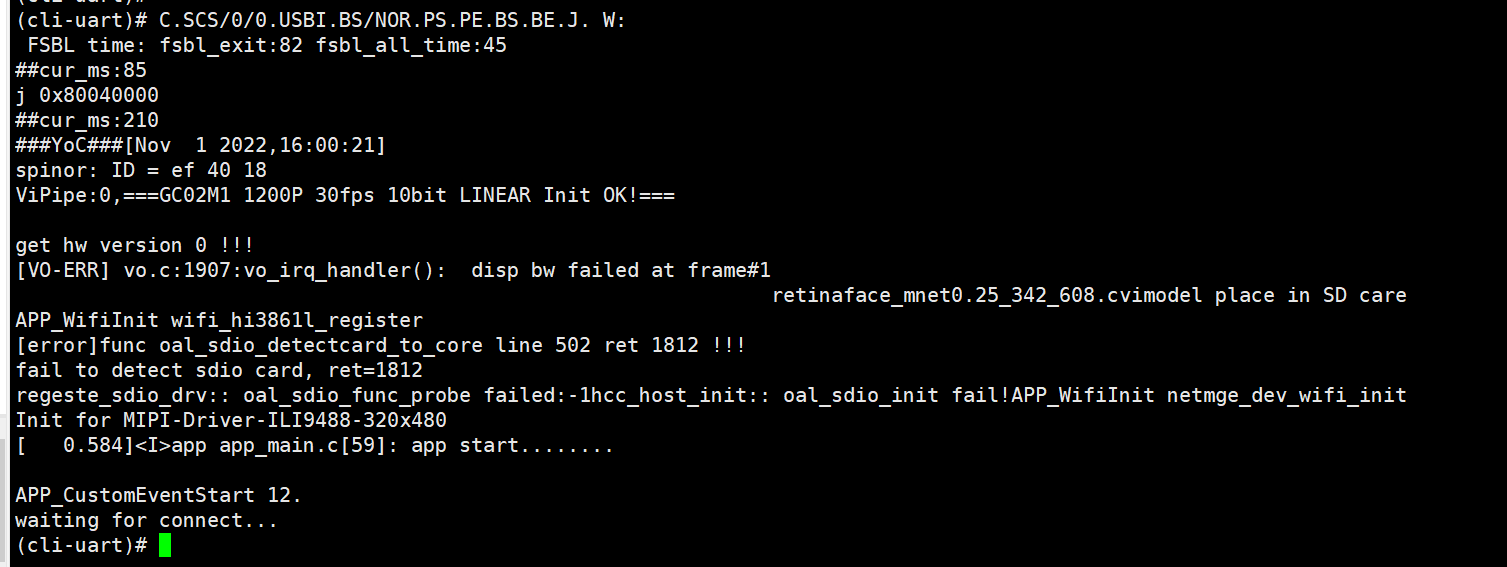

  2. The ###YOC### message printed after power-on indicates that the kernel has finished booting.

_images/image11.png

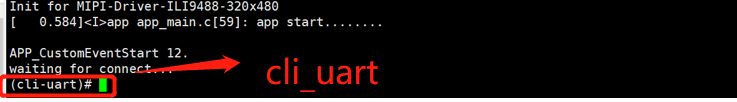

  1. Press Enter in the serial console. Normal input/output and cli_uart output indicate that the system is running normally.

_images/image21.png

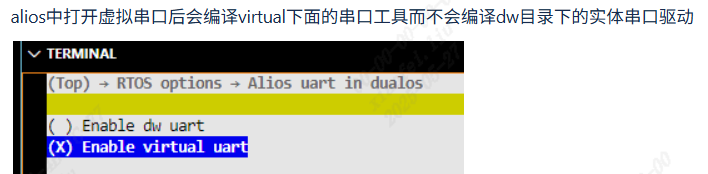

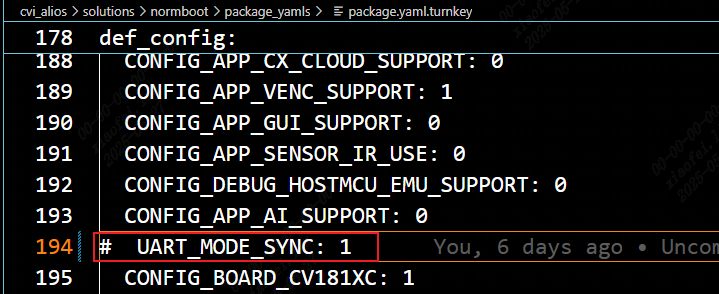

  1. Using the AliOS virtual serial port requires configuring two locations during compilation

_images/image31.png
_images/image41.png

  1. To view the small-core PC value and observe it changing: devmem 0x1901070
