2. Compilation Environment

2.1. Install Python and pip

  1. Install Python3

  2. Download PIP script

  3. Install pip by running the following command

python get-pip.py

  1. Install the Python serial and USB driver modules by running the following command

pip3 install pyserial pyusb

  1. Install the YAML module by running the following command

pip3 install pyyaml

Note

If installing pyyaml above fails, use the following command

pip3 install pyyaml -i http://pypi.douban.com/simple –trusted-host pypi.douban.com

Note

PS: Ubuntu version 20.0.4 or later is recommended

2.2. Install the YOCTOOL tool

  1. Install yoctool with the command in a Linux environment

sudo pip install yoctools -U

  1. Run yoc -V to check the version and make sure it is 2.0.25 or later

_images/image1.png

  1. Enter product version to check the product version and make sure that product was installed successfully

_images/image2.png

2.3. SDK File Description

_images/image3.png

  1. Description of the top-level directories:

  • boards: Stores board-related configuration

  • components: Stores various components, such as the AOS kernel, CLI, network components, and CSI drivers

  • host-tools: Is the cross-compilation toolchain. AliOS uses the Xuantie cross-compilation toolchainXuantie-900-gcc-elf-newlib-x86_64-V2.6.1

  • solutions: Is the solution directory. It mainly stores business logic and runtime binaries, and supports fast-boot and normal-boot solutions.

  1. Description of the directories under solutions:

  • application Mainly contains application-related components

  • customization Contains customer applications and configurations for different product forms. The main files are described below:

custom_sysparam.c

vbconfiguration

custom_viparam.c

VI configuration and sensor-related files are stored here

custom_voparam.c

voconfiguration

custom_vpssparam.c

Mainly VPSS configuration

custom_vencparam.c

Mainly VENC configuration

custom_moduleparam.c

Mainly common configuration for each module

custom_platform.c

Platform-related configuration, such as pinmux settings and GPIO pull-up operations

custom_event.c

System and module event-related configuration

  • py_tool: Python tools

  • script: Compilation scripts

  1. package.yaml File Description

https://help.aliyun.com/document_detail/308617.html

package.yaml is mainly used to define and enable feature macros, such as selecting different sensors and selecting required component dependencies

2.4. Fast Boot Mode and Normal Boot Mode

2.5. How to Compile AliOS

  • Set the environment variables (using cv1842hp_wevb_0014a_spinor as an example)

$ source build/envsetup_soc.sh
 -------------------------------------------------------------------------------------------------------
   Usage:
   (1) menuconfig - Use menu to configure your board.
       ex: $ menuconfig

   (2) defconfig $CHIP_ARCH - List EVB boards($BOARD) by CHIP_ARCH.
      ** cv184x ** -> ['cv184x', 'cv1841c', 'cv1842cp', 'cv1842hp', 'cv1843hp']
       ex: $ defconfig cv184x

  (3) defconfig $BOARD - Choose EVB board settings.
       ex: $ defconfig cv1842hp_wevb_0014a_spinor
       ex: $ defconfig cv1842cp_wevb_0015a_spinand
 -------------------------------------------------------------------------------------------------------

  • Select the EVB cv1842hp_wevb_0014a_spinor

$ defconfig cv1842hp_wevb_0014a_spinor
====== Environment Variables =======
PROJECT: cv1842hp_wevb_0014a_spinor, DDR_CFG=ddr3_2133_x16
CHIP_ARCH: CV184X, DEBUG=0
SDK VERSION: musl_arm, RPC=0
ATF options: ATF_KEY_SEL=default, BL32=1
Linux source folder:linux_5.10, Uboot source folder: u-boot-2021.10
ENABLE_DUAL_OS: y
CROSS_COMPILE_PREFIX: arm-none-linux-musleabihf-
ENABLE_BOOTLOGO: 0
Flash layout xml: build/boards/cv184x/cv1842hp_wevb_0014a_spinor/partition/partition_spinor.xml
Sensor tuning bin: cvsens_cv2003
Output path: install/soc_cv1842hp_wevb_0014a_spinor

  • Dual-system configuration

Use the menuconfig command to select the required configuration and compile the AliOS image.

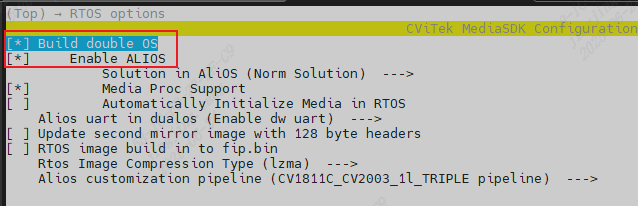

_images/image4.png

The default is normal boot mode. Select the corresponding configuration to switch between fast boot mode and normal mode.

_images/image5.png

  • Compile AliOS

The AliOS image is usually packaged into the boot image with a single command.

$ build_uboot
 Run build_uboot() function
 Run _link_uboot_logo() function
 ......
 [TARGET] alios-depends
 ......
 [TARGET] alios-build
 ......
 INFO: raw2cimg small part size
 INFO: size:b5c42, offset:200000, part_sz:100000, crc:38896f66
 INFO: Packing yoc.bin done!

After compilation, the generated AliOS image file yoc.bin is copied to the install directory.

2.6. Image Description

The generated files under /solutions/normboot are:

  1. yoc.elf: The complete executable and related files, which can be parsed by objdump or readelf

  2. yoc.bin: The runtime binary and small-core image file to be burned to Flash

  3. yoc.asm: Disassembly file

  4. yoc.map: Memory map file

  5. yoc_sdk/lib/*.a: Static library

  6. generated: The firmware image file structure of the AliOS system is described below:

  • boot0: Binary file of the first-stage Bootloader (FSBL)

  • boot: Binary file of the second-stage Bootloader (such as U-Boot)

  • config.yaml: Core file for the partition table and firmware configuration

  • imtb: Binary file of the Image Table

  • imtb.hex: HEX format of the Image Table

  • prim: Main system image (an alias for yoc.bin)

  • prim.hex: HEX format of the main system image
