10.3. API Reference

thissectionwillsequentiallyDescriptionCVI_AUDIO eachModuleAPIUseMethod, pleaseNoteinUseCVI_ADUDIOtimepleasefirstverify CVI_SYS_Init alreadybeCall, canensureforshouldsystemgroupitemInitialize, CVI_AUDIO_INITalsomustbeCall, canensureAudioModuleinsoftwarealreadybeInitialize, userNoteCVI_AUDIO_INITonlyneed tocallonesecondary. inexit AudioUsetime, pleaseverifyCVI_AUDIOrelated modulealreadyperformDisbale, andconnectwithCall CVI_SYS_Exit.

10.3.1. Module Attribute APIs

AudioFunctionAPI:

• CVI_AUDIO_INIT: InitializeAudioModule.

• CVI_AUDIO_DEINIT: Deinitialize the audio module.

• CVI_AUD_SYS_Bind: SetAudioBindAttribute.

• CVI_AUD_SYS_UnBind: Unbind Audio.

10.3.1.1. CVI_AUDIO_INIT

Description

Initializeaudio Module.

Syntax

CVI_S32 CVI_AUDIO_INIT(void);

Parameters

Parameter Name	Description	Input/Output
None	No input value is required

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

UseaudioModulebefore, need tothroughthisAPIperformInitialize. otherwiseFunctionwillabnormalorMemoryDataError.

10.3.1.2. CVI_AUDIO_DEINIT

Description

Release audio Module.

Syntax

CVI_S32 CVI_AUDIO_DEINIT(void);

Parameters

Parameter Name	Description	Input/Output
None	No input value is required

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

audioModulebefore, need tothroughthisAPIperformReleaseModule. otherwiseFunctionwillabnormalorbodyDataError.

10.3.1.3. CVI_AUD_SYS_Bind

Description

Set Audio ModuleBindAttribute.

Syntax

CVI_S32 CVI_AUD_SYS_Bind(const MMF_CHN_S *pstSrcChn, const MMF_CHN_S *pstDestChn);

Parameters

Parameter Name	Description	Input/Output
pstSrcChn	Audio BindSourcePointer.	Input
pstDestChn	Audio BindPurposePointer.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

1. SupportBindobjectis:

(AudIn -> AudEnc),

(AudDec ->AudOut),

2. See also cvi_sample_audio.c in SAMPLE_AUDIO_AiAenc and SAMPLE_AUDIO_AdecAo Unbind method.

Example

None.

10.3.1.4. CVI_AUD_SYS_UnBind

Description

release AUDIO ModuleBind.

Syntax

CVI_S32 CVI_AUD_SYS_UnBind(const MMF_CHN_S *pstSrcChn, const MMF_CHN_S *pstDestChn);

Parameters

Parameter Name	Description	Input/Output
pstSrcChn	AUDIO ModuleBindSourcePointer.	Input
pstDestChn	AUDIO ModuleBindPurposePointer.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

None

Example

None.

10.3.2. Audio input

Audio inputimplementConfigurationandEnableDevice, GetAudioFrameDataetc.Function.

thisFunctionModuleprovidewithunder API:

• CVI_AI_SetPubAttr: Set Audio Input Device attributes.

• CVI_AI_GetPubAttr: Get Audio Input Device attributes.

• CVI_AI_Enable: Enable Audio Input Device.

• CVI_AI_Disable: Disable Audio Input Device.

• CVI_AI_EnableChn: Enable Audio Input Channel.

• CVI_AI_DisableChn: Disable Audio Input Channel.

• CVI_AI_GetFrame: GetaudioFrame.

• CVI_AI_ReleaseFrame: ReleaseaudioFrame.

• CVI_AI_SetChnParam: Set Audio Input ChannelParameter.

• CVI_AI_GetChnParam: Get Audio Input ChannelParameter.

• CVI_AI_EnableReSmp: Enable Audio Input resampling.

• CVI_AI_DisableReSmp: Disable Audio Input resampling.

• CVI_AI_ClrPubAttr: Clear Audio Input Device attributes.

• CVI_AI_SaveFile: EnableAudio inputsaveFileFunction.

• CVI_AI_QueryFileStatus: QueryAudio inputChannelWhetherin the file-saving state.

• CVI_AI_EnableAecRefFrame: Allow the user to get the AEC reference frame even when AEC is not enabled.

• CVI_AI_DisableAecRefFrame: Prohibit getting the AEC reference frame when AEC is not enabled.

• CVI_AI_SetVolume: Set Audio Input DeviceVolume.

• CVI_AI_GetVolume: GetAudio Input DeviceVolume.

• CVI_AI_SetStereoVolume: Set Audio Input DevicestereoVolume.

• CVI_AI_GetStereoVolume: Get Audio Input DevicestereoVolume.

10.3.2.1. CVI_AI_SetPubAttr

Description

Set Audio Input Device attributes

Syntax

CVI_S32 CVI_AI_SetPubAttr(AUDIO_DEV AiDevId, const AIO_ATTR_S *pstAttr);

Parameters

Parameter Name	Description	Input/Output
AiDevId	AudioDevice number	Input
pstAttr	Audio InputDevice attributesPointer	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

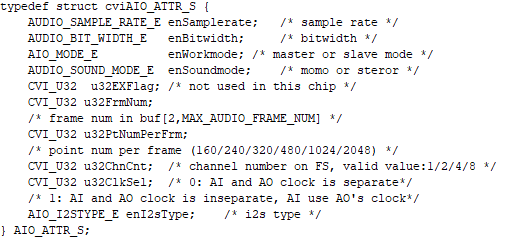

• Audio input device attributesdetermineInputDataFormat, InputDevice attributesincludingOperating mode, Sample rate, samplingprecision, buffer Size, eachFramesamplingpointnumber, extendedflag, clockselectandChannelCount. theseAttributeshouldwithforconnect Codec Configurationtimingonecause, that iscanSuccessforconnect.

• AiDevId is preset to 0; unless expansion is required, a value above 2 returns an error.

• enBitwidth: bitsdepth 8bit, 16bit or 24bit, actualapplicationinsamplingprecisionAudio Codec limit.

• buffer Size AIO_ATTR_S in u32FrmNum used to Configuration Audio Input inused to ReceiveAudioDataregionblockAudio.

• UsrFrmDept: regionblockaudio frame, recommendneed togreater thanetc.to 5.

• enSamplerateWhen AudioSample rateheighttime, recommendshouldincreaseeachFramesamplingpointCount.

• ifwillthesecaptured AudioDatasendEncoding, thenshouldeachFrametimenotto 10ms (For example 16K samplingfrequencyunder eachFramesamplingpointnumbertoshouldSetis 160), otherwiseDecodingafteraudiocancanhasabnormal.

• enSoundmode: dualAudio ChannelorsingleAudio Channelspeechaudio frameSet

• u32ChnCnt: ChannelCount ChannelCountrefers tocurrentInputDevice Audio Input FunctionChannelCount, need towithforconnect Audio Codec Configuration onecause; Support 1, 2.

• u32EXFlag: extendedflagfor Audio Input DeviceInvalid

• u32ClkSel: clockSet

Example

None.

10.3.2.2. CVI_AI_GetPubAttr

Description

Get Audio Input Device attributes

Syntax

CVI_S32 CVI_AI_GetPubAttr(AUDIO_DEV AiDevId, AIO_ATTR_S*pstAttr);

Parameters

Parameter Name	Description	Input/Output
AiDevId	AudioDevice number	Input
pstAttr	Audio Input Device attributesPointer	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

ifnot initializedorisCVI_AI_SetPubAttrnotcall, thenuserwilltocontentis0Pointerandnumbervalue.

AiDevId is preset to 0; unless expansion is required, a value above 2 returns an error.

Example

None.

10.3.2.3. CVI_AI_Enable

Description

Enable Audio Input Device

Syntax

CVI_S32 CVI_AI_Enable(AUDIO_DEV AiDevId);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

thisAPIisFinally, EnableAudio Inputnumber, inCallbeforepleaseverifyRelatedAttributealreadySetcompleted.

Example

Audio InUse范例: CVI_S32 i; CVI_S32 s32Ret; s32Ret = CVI_AI_SetPubAttr(AiDevId, pstAioAttr); if (s32Ret) {  printf("%s: CVI_AI_SetPubAttr(%d) failed with %#x\n"  , __func__,  AiDevId,  s32Ret);  return s32Ret; } s32Ret = CVI_AI_Enable(AiDevId); if (s32Ret) {  printf("%s: CVI_AI_Enable(%d) failed with %#x\n", __func__, AiDevId,  s32Ret);  return s32Ret; } for (i = 0; i < s32AiChnCnt >> pstAioAttr->enSoundmode; i++) {  s32Ret = CVI_AI_EnableChn(AiDevId, i / (pstAioAttr->enSoundmode + 1));  if (s32Ret) {  printf("%s: CVI_AI_EnableChn(%d,%d) failed with %#x\n", __func__,  AiDevId, i, s32Ret);  return s32Ret;  }  if (bResampleEn == CVI_TRUE) {  s32Ret = CVI_AI_EnableReSmp(AiDevId, i, enOutSampleRate);  if (s32Ret) {  printf("%s: CVI_AI_EnableReSmp(%d,%d) failed with %#x\n", __func__,  AiDevId, i, s32Ret);  return s32Ret;  }  }  if (pstAiVqeAttr != NULL) {  CVI_BOOL bAiVqe = CVI_TRUE;  s32Ret = CVI_AI_SetTalkVqeAttr(  0,  0,  0,  0,  (AI_TALKVQE_CONFIG_S *)pstAiVqeAttr);  break;  }  if (s32Ret) {  printf("%s: SetAiVqe%d(%d,%d) failed with %#x\n",  __func__, u32AiVqeType,  AiDevId, i, s32Ret);  return s32Ret;  }  if (bAiVqe) {  s32Ret = CVI_AI_EnableVqe(AiDevId, i);  if (s32Ret) {  printf("%s: CVI_AI_EnableVqe(%d,%d) failed with %#x\n", __func__,  AiDevId, i, s32Ret);  return s32Ret;  }  }  }

10.3.2.4. CVI_AI_Disable

Description

Audio Input Device

Syntax

CVI_S32 CVI_AI_Disable(AUDIO_DEV AiDevId);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

thisAPIisstopAudio InputDeviceFinally, oneprogram, Disable Audio Input Devicebeforemust firstDisablethisDeviceunderalready enabledthehas Audio Input Channel, ifhasAENCorAudio Outputconnect, pleasefirststopwithofbindingthenCallthis.

Example

None.

10.3.2.5. CVI_AI_EnableChn

Description

Enable Audio Input Channel

Syntax

CVI_S32 CVI_AI_EnableChn(AUDIO_DEV AiDevId, AI_CHN AiChn);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

Enable Audio Input Channelbefore, must firstEnableitstheAudio InputDevice.

Example

None.

10.3.2.6. CVI_AI_DisableChn

Description

Disable Audio Input Channel.

Syntax

CVI_S32 CVI_AI_DisableChn(AUDIO_DEV AiDevId, AI_CHN AiChn);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

pleasein CVI_AI_Disable beforecallthisAPI, ChannelParameter.

Example

None.

10.3.2.7. CVI_AI_GetFrame

Description

Getaudio frame

Syntax

CVI_S32 CVI_AI_GetFrame(AUDIO_DEV AiDevId, AI_CHN AiChn, AUDIO_FRAME_S *pstFrm, AEC_FRAME_S *pstAecFrm , CVI_S32 s32MilliSec);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input
pstFrm	Audio frame structure pointer. The user obtains the audio frame through this structure pointer.	Output
pstAecFrm	Echo CancellationReferenceFrameStructurePointer.	Output
s32MilliSec	GetData timeout -1 indicates blocking mode and waits indefinitely when there is no data; 0 meansnon-blockingMode, NoneDatatimethenReturn; >0 meansblocking s32MilliSec milliseconds, TimeoutthenReturn	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• s32MilliSec valuemustgreater thanetc.to-1, etc.to-1 timeusingblockingModeGetData, etc.to 0 time non-blockingModeGetData, greater than 0 time, blocking s32MilliSec millisecondsafter, nothasDatathenReturn timeand.

• GetAudioFrameDatabefore, must firstEnableforshould Audio Input Channel.

• GetAECaudio frame, pleasefirstdetermineVQEinAECalready enabled.

Example

None.

10.3.2.8. CVI_AI_ReleaseFrame

Description

Releaseaudio frame.

Syntax

CVI_S32 CVI_AI_ReleaseFrame(AUDIO_DEV AiDevId, AI_CHN AiChn, const AUDIO_FRAME_S *pstFrm, const AEC_FRAME_S *pstAecFrm);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input
pstFrm	Audio frame structure pointer. The user obtains the audio frame through this structure pointer.	Input
pstAecFrm	Echo CancellationReferenceFrameStructurePointer.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

If notneed toReleaseEcho CancellationReferenceFrame, pstAecFrm setis NULL that iscan.

Example

None.

10.3.2.9. CVI_AI_SetChnParam

Description

Set Audio Input ChannelParameter.

Syntax

CVI_S32 CVI_AI_SetChnParam(AUDIO_DEV AiDevId, AI_CHN AiChn, const AI_CHN_PARAM_S *pstChnParam);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input
pstChnParam	AudioChannelParameter	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

ChannelParameterbeforeonlyhasaMembervariable, used to SetUserGetAudioFrameregionblockdepth,

defaultdepthis0. thisMembervariablevaluenotcangreater than30.

Example

None.

10.3.2.10. CVI_AI_GetChnParam

Description

Get Audio Input ChannelParameter.

Syntax

CVI_S32 CVI_AI_GetChnParam(AUDIO_DEV AiDevId, AI_CHN AiChn, AI_CHN_PARAM_S *pstChnParam);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input
pstChnParam	AudioChannelParameter	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h thisFileprovideandAudioModuletoMiddlewaremultiplebodylayerInterfaceofone

• Library files: libcvi_audio.a

Precautions

ChannelParameterbeforeonlyhasaMembervariable, used to SetUserGetAudioFrameregionblockdepth.

Example

None.

10.3.2.11. CVI_AI_EnableReSmp

Description

Enable Audio Input resampling.

Syntax

CVI_S32 CVI_AI_EnableReSmp(AUDIO_DEV AiDevId, AI_CHN AiChn, AUDIO_SAMPLE_RATE_E enOutSampleRate);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input
enOutSampleRat	AudioresamplingOutputSample rate.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libcvi_vqe.so, libcvi_RES1.so

Precautions

None.

Sample rateSupportlevelas follows:

typedef enum _AUDIO_SAMPLE_RATE_E {  AUDIO_SAMPLE_RATE_8000 = 8000, /* 8K samplerate*/  AUDIO_SAMPLE_RATE_11025 = 11025, /* 11.025K samplerate*/  AUDIO_SAMPLE_RATE_16000 = 16000, /* 16K samplerate*/  AUDIO_SAMPLE_RATE_22050 = 22050, /* 22.050K samplerate*/  AUDIO_SAMPLE_RATE_24000 = 24000, /* 24K samplerate*/  AUDIO_SAMPLE_RATE_32000 = 32000, /* 32K samplerate*/  AUDIO_SAMPLE_RATE_44100 = 44100, /* 44.1K samplerate*/  AUDIO_SAMPLE_RATE_48000 = 48000, /* 48K samplerate*/  AUDIO_SAMPLE_RATE_64000 = 64000, /* 64K samplerate*/  AUDIO_SAMPLE_RATE_BUTT, } AUDIO_SAMPLE_RATE_E;

Example

None.

10.3.2.12. CVI_AI_DisableReSmp

Description

Close Audio Input resamplingFunction.

Syntax

CVI_S32 CVI_AI_DisableReSmp(AUDIO_DEV AiDevId, AI_CHN AiChn);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libcvi_RES1.so, libcvi_vqe.so

Precautions

requireinCallthisInterfacebefore, firstDisableUsethis Audio Input DeviceshouldChannelAudioData AENC Channel and Audio Output Channel, otherwisecancancausethisInterfaceCallFailure.

Example

None.

10.3.2.13. CVI_AI_ClrPubAttr

Description

empty Pub Attribute.

Syntax

CVI_S32 CVI_AI_ClrPubAttr(AUDIO_DEV AiDevId);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

Stop the device before clearing device attributes.

ClearDevice attributesbefore, recommendstopthehasinternalorisuser-get modeof, layerstillinaudio framewhilecauseisabnormal.

Example

None.

10.3.2.14. CVI_AI_SaveFile

Description

EnableAudio inputsaveFileFunction.

Syntax

CVI_S32 CVI_AI_SaveFile(AUDIO_DEV AiDevId, AI_CHN AiChn, const AUDIO_SAVE_FILE_INFO_S *pstSaveFileInfo);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input
pstSaveFileInfo	Audio save-file attribute structure pointer.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

This interface is used only to dump Audio Input data when Audio Input-AENC and Audio Input-Audio Output are not system-bound.

Example

None.

10.3.2.15. CVI_AI_QueryFileStatus

Description

QueryAudio inputChannelWhetherin the file-saving state.

Syntax

CVI_S32 CVI_AI_QueryFileStatus(AUDIO_DEV AiDevId, AI_CHN AiChn, AUDIO_FILE_STATUS_S* pstFileStatus);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input
pstFileStatus	fileStatusAttribute StructurebodyPointer.	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• thisInterfacemainused to, oneflownotwillto.

• This interface is used only to dump Audio Input data when Audio Input-AENC and Audio Input-Audio Output are not system-bound.

• thisInterfaceused to QueryAudio inputChannelWhetherin the file-saving state, When UserCall CVI_AI_SaveFile storageFileafter, canCallthisInterfaceQuerystorageFileWhetherreachspecified, If pstFileStatus bSaving is CVI_TRUE, DescriptionnothasreachspecifiedSize, is CVI_FALSEthenalreadyreachspecifiedSize.

Example

None.

10.3.2.16. CVI_AI_EnableAecRefFrame

Description

in AEC notOpencaseunderalsomakeUsercanGetto AEC ReferenceFrame.

Syntax

CVI_S32 CVI_AI_EnableAecRefFrame(AUDIO_DEV AiDevId, AI_CHN AiChn, AUDIO_DEV AoDevId, AO_CHN AoChn);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input
AoDevId	used to Get AEC ReferenceFrame Audio Output Device number.	Input
AoChn	used to Get AEC ReferenceFrame Audio Output Channel numberDescription	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

None.

Example

None.

10.3.2.17. CVI_AI_DisableAecRefFrame

Description

Prohibit getting the AEC reference frame when AEC is not enabled.

Syntax

CVI_S32 CVI_AI_DisableAecRefFrame(AUDIO_DEV AiDevId, AI_CHN AiChn);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

None.

Example

None.

10.3.2.18. CVI_AI_SetVolume

Description

SetInputVolume.

Syntax

CVI_S32 CVI_AI_SetVolume(AUDIO_DEV AiDevId, CVI_S32 s32VolumeStep);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
s32VolumeStep	InputVolumestep[24-0, 0:mute].	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a/libcvi_audio.so

Precautions

None.

Example

None.

10.3.2.19. CVI_AI_GetVolume

Description

GetInputVolume.

Syntax

CVI_S32 CVI_AI_GetVolume(AUDIO_DEV AiDevId, CVI_S32 *ps32VolumeStep);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
ps32VolumeStep	VolumestepPointer[24-0, 0:mute].	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a/libcvi_audio.so

Precautions

None.

Example

None.

10.3.2.20. CVI_AI_SetStereoVolume

Description

SetAudio inputsingleChannelVolume.

Syntax

CVI_S32 CVI_AI_SetStereoVolume(AUDIO_DEV AiDevId, CVI_S32 AiStereoId, CVI_S32 s32Volume);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio inputDevice number.	Input
AiStereoId	Audio Input Audio Channel number.	Input
s32Volume	Volumevalue, Value Range: [0, 24].	Input

Return Value

Return Value	Description
0	Success.
Non-zero	Failure; seeError Codes.

Requirements

• Header files: cvi_ai.h

• Library files: libai.a

Note

• AiStereoId 0: generationTableSetleftAudio ChannelVolumevalue. 1: generationTableSetrightAudio ChannelVolumevalue.

Example

None

10.3.2.21. CVI_AI_GetStereoVolume

Description

GetAudio inputChannelVolume.

Syntax

CVI_S32 CVI_AI_GetStereoVolume(AUDIO_DEV AiDevId, CVI_S32 AiStereoId, CVI_S32 *ps32Volume);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio inputDevice number.	Input
AiStereoId	Audio Input Audio Channel number.	Input
ps32Volume	VolumevaluePointer, Value Range: [0, 24].	Output

Return Value

Return Value	Description
0	Success.
Non-zero	Failure; seeError Codes.

Requirements

• Header files: cvi_ai.h

• Library files: libai.a

Note

• AiStereoId 0: generationTableGetleftAudio ChannelVolumevalue. 1: generationTableGetrightAudio ChannelVolumevalue.

Example

None

10.3.3. Voice Quality EnhancementAPI

• CVI_AI_SetVqeAttr: Set attributes related to the Audio Input voice quality enhancement function.

• CVI_AI_SetTalkVqeAttr: Set attributes related to the Audio Input speech quality enhancement function.

• CVI_AI_GetTalkVqeAttr: Get Audio Input speechqualityenhancementFunctionspeechRelatedAttribute.

• CVI_AI_SetRecordVqeAttr: Set Audio Input recordingqualityenhancementFunctionRelatedAttribute. (beforeNot supported);

• CVI_AI_GetRecordVqeAttr: Get Audio Input recordingqualityenhancementFunctionRelatedAttribute. (beforeNot supported);

• CVI_AI_EnableVqe: Enable Audio Input audioqualityenhancementFunction.

• CVI_AO_DisableVqe: Disable Audio Output audioqualityenhancementFunction.

• CVI_AI_SetVqeVolume: SetAudio input (AI) DeviceVolume.

• CVI_AI_GetVqeVolume: GetAudio input (AI) DeviceVolume.

• CVI_AI_VqeFunConfig: ConfigurationAudio input (AI) Deviceaudioqualityenhancement (VQE) Function.

• CVI_AI_DisableVqe: Disable Audio Input audioqualityenhancementFunction.

• CVI_AI_SetTrackMode: SetAudio ChannelMode.

• CVI_AI_GetTrackMode: GetAudio ChannelMode.

• CVI_AO_SetVqeAttr: Set attributes related to the Audio Output voice quality enhancement function.

• CVI_AO_GetVqeAttr: Get Audio Output audioqualityenhancementFunctionRelatedAttribute.

• CVI_AO_EnableVqe: Enable Audio Output audioqualityenhancementFunction.

• CVI_AO_DisableVqe: Disable Audio Output audioqualityenhancementFunction.

• CVI_VQE_PathSelect: VQE algorithmpathSet.

10.3.3.1. CVI_AI_SetVqeAttr

Description

Set attributes related to the Audio Input voice quality enhancement function.

Syntax

CVI_S32 CVI_AI_SetVqeAttr(AUDIO_DEV AiDevId, AI_CHN AiChn, AUDIO_DEV AoDevId, AO_CHN AoChn, AI_VQE_CONFIG_S *pstVqeConfig);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input
AoDevId	Audio OutputDevice number, used to Echo Cancellation.	Input
AoChn	Audio Output Channel number used for echo cancellation.	Input
pstVqeConfig	Audio input voice quality enhancement configuration structure pointer	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libcvi_RES1.so, libcvi_vqe.so,

Precautions

EnableaudioqualityenhancementFunctionbeforemust firstSetRelativeshould Audio Input ChannelaudioqualityenhancementFunctionRelatedAttribute.

Set Audio Input audioqualityenhancementFunctionRelatedAttributebefore, must firstEnableforshould Audio Input Channel.

same Audio Input ChannelaudioqualityenhancementFunctionNot supporteddynamicSetAttribute, againSet Audio Input Channelaudio qualityenhancementFunctionRelatedAttributetime, need tofirstClose Audio Input ChannelaudioqualityFunction, thenSet Audio Input ChannelaudioqualityenhancementFunctionRelatedAttribute.

Example

None.

10.3.3.2. CVI_AI_SetTalkVqeAttr

Description

Set Audio Input audioqualityenhancementFunction (Talk) RelatedAttribute.

Syntax

CVI_S32 CVI_AI_SetTalkVqeAttr(AUDIO_DEV AiDevId, AI_CHN AiChn, AUDIO_DEV AoDevId, AO_CHN AoChn, AI_TALKVQE_CONFIG_S *pstVqeConfig);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input
AoDevId	Audio OutputDevice number, used to Echo Cancellation.	Input
AoChn	Audio Output Channel number used for echo cancellation.	Input
pstVqeConfig	Audio input voice quality enhancement configuration structure pointer	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libcvi_RES1.so, libcvi_vqe.so, libssp.so

Precautions

Talk Vqe mainin IPC sceneunderUse.

same Audio Input ChannelaudioqualityenhancementFunctionNot supporteddynamicSetAttribute, againSet Audio Input Channelaudio qualityenhancementFunctionRelatedAttributetime, need tofirstClose Audio Input ChannelaudioqualityFunction, thenSet Audio Input Channel audioqualityenhancementFunctionRelatedAttribute.

Example

None.

10.3.3.3. CVI_AI_GetTalkVqeAttr

Description

Get Audio Input audioqualityenhancementFunction (Talk) RelatedAttribute

Syntax

CVI_S32 CVI_AI_GetTalkVqeAttr(AUDIO_DEV AiDevId, AI_CHN AiChn, AI_TALKVQE_CONFIG_S *pstVqeConfig);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input
pstVqeConfig	Audio input voice quality enhancement configuration structure pointer.	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libcvi_RES1.so, libcvi_vqe.so, libssp.so

Precautions

GetaudioqualityenhancementFunctionRelatedAttributebeforemust firstSetRelativeshould Audio Input ChannelaudioqualityenhancementFunctionRelatedAttribute.

Example

None.

10.3.3.4. CVI_AI_SetRecordVqeAttr

Description

Set attributes related to the Audio Input voice quality enhancement function (Record).

Syntax

CVI_S32 CVI_AI_SetRecordVqeAttr(AUDIO_DEV AiDevId, AI_CHN AiChn, const AI_RECORDVQE_CONFIG_S *pstVqeConfig);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input
pstVqeConfig	Audio input voice quality enhancement configuration structure pointer	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libcvi_RES1.so, libcvi_vqe.so, libssp.so

Precautions

None.

Example

None.

10.3.3.5. CVI_AI_GetRecordVqeAttr

Description

Set attributes related to the Audio Input voice quality enhancement function (Record).

Syntax

CVI_AI_GetRecordVqeAttr (AUDIO_DEV AiDevId, AI_CHN AiChn, const AI_RECORDVQE_CONFIG_S *pstVqeConfig);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error	Input
AiChn	Audio input channel number. It is independent of the channel mode description in enSoundmode. Users can obtain the same device audio source through different AiChn values under the same AiDevId.	Input
pstVqeConfig	Audio input voice quality enhancement configuration structure pointer.	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libcvi_RES1.so, libcvi_vqe.so, libssp.so

Precautions

None.

Example

None.

10.3.3.6. CVI_AI_EnableVqe

Description

Enable Audio Input audioqualityenhancementFunction.

Syntax

CVI_S32 CVI_AI_EnableVqe(AUDIO_DEV AiDevId, AI_CHN AiChn);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
AiChn	Audio Input channel number. It is unrelated to the Audio Channel mode description in enSoundmode. The user can obtain the same device audio source through different AiChn values under the same AiDevId.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libcvi_RES1.so, libcvi_vqe.so, libssp.so

Precautions

• EnableaudioqualityenhancementFunctionbeforemust firstEnableRelativeshould Audio Input Channel.

• multiplesecondaryEnablesame Audio Input ChannelaudioqualityenhancementFunctiontime, ReturnSuccess.

• Disable Audio Input Channelafter, If againEnable Audio Input Channel, andUseaudioqualityenhancementFunction, need toCallthisconnect againEnableaudioqualityenhancementFunction.

Example

None.

10.3.3.7. CVI_AI_DisableVqe

Description

Disable Audio Input audioqualityenhancementFunction

Syntax

CVI_S32 CVI_AI_DisableVqe(AUDIO_DEV AiDevId, AI_CHN AiChn);

Parameters

Parameter Name	Description	Input/Output
AiDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
AiChn	Audio Input channel number. It is unrelated to the Audio Channel mode description in enSoundmode. The user can obtain the same device audio source through different AiChn values under the same AiDevId.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libcvi_RES1.so, libcvi_vqe.so, libssp.so

Precautions

• notthenUse Audio Input audioqualityenhancementFunctiontime, shouldthisCallthisInterfacewillitsDisable.

Example

None.

10.3.3.8. CVI_AI_SetTrackMode

Description

Set Audio Input Audio ChannelMode

Syntax

CVI_S32 CVI_AI_SetTrackMode(AUDIO_DEV AiDevId, AUDIO_TRACK_MODE_E enTrackMode);

Parameters

Parameter Name	Description	Input/Output
AiDevId	AudioDevice number. Device numberPreset to0, Unless customization requires expansion, Setexceeds2, returns an error	Input
enTrackMode	typedef enum _AUDIO_TRACK_MODE_E { AUDIO_TRACK_NORMAL = 0, AUDIO_TRACK_BOTH_LEFT = 1, AUDIO_TRACK_BOTH_RIGHT = 2, AUDIO_TRACK_EXCHANGE = 3, AUDIO_TRACK_MIX = 4, AUDIO_TRACK_LEFT_MUTE = 5, AUDIO_TRACK_RIGHT_MUTE = 6, AUDIO_TRACK_BOTH_MUTE = 7, AUDIO_TRACK_BUTT } AUDIO_TRACK_MODE_E;	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libcvi_RES1.so, libcvi_vqe.so, libssp.so

Precautions

• When the Audio Input device operates in I2S mode, getting the Audio Channel mode is supported; it is not supported in PCM mode.

• Call this interface after the Audio Input device has been successfully enabled.

• Track mode capabilities are related to the audio codec. Settings may differ if the client uses its own codec.

Example

None.

10.3.3.9. CVI_AI_GetTrackMode

Description

Get Audio Input Audio ChannelMode

Syntax

CVI_S32 CVI_AI_GetTrackMode(AUDIO_DEV AiDevId, AUDIO_TRACK_MODE_E *penTrackMode);

Parameters

Parameter Name	Description	Input/Output
AiDevId	AudioDevice number. Device numberPreset to0, Unless customization requires expansion, Setexceeds2, returns an error	Input
enTrackMode	typedef enum _AUDIO_TRACK_MODE_E { AUDIO_TRACK_NORMAL = 0, AUDIO_TRACK_BOTH_LEFT = 1, AUDIO_TRACK_BOTH_RIGHT = 2, AUDIO_TRACK_EXCHANGE = 3, AUDIO_TRACK_MIX = 4, AUDIO_TRACK_LEFT_MUTE = 5, AUDIO_TRACK_RIGHT_MUTE = 6, AUDIO_TRACK_BOTH_MUTE = 7, AUDIO_TRACK_BUTT } AUDIO_TRACK_MODE_E;	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libcvi_RES1.so, libcvi_vqe.so, libssp.so

Precautions

• When the Audio Input device operates in I2S mode, getting the Audio Channel mode is supported; it is not supported in PCM mode.

• Call this interface after the Audio Input device has been successfully enabled.

• Track mode capabilities are related to the audio codec. Settings may differ if the client uses its own codec.

Example

None.

10.3.3.10. CVI_AO_SetVqeAttr

Description

Set attributes related to the Audio Output voice quality enhancement function.

Syntax

CVI_S32 CVI_AO_SetVqeAttr(AUDIO_DEV AoDevId, AO_CHN AoChn, AO_VQE_CONFIG_S *pstVqeConfig);

Parameters

Parameter Name	Description	Input/Output
AoDevId	AudioDevice number. Device numberPreset to0, Unless customization requires expansion, Setexceeds2, returns an error.	Input
AoChn	Audio output channel number	Input
pstVqeConfig	Audio Output voice quality enhancement configuration structure pointer	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libssp.so, libcvi_RES1.so

Precautions

• EnableaudioqualityenhancementFunctionbeforemust firstSetRelativeshould Audio Output ChannelaudioqualityenhancementFunctionRelatedAttribute.

• Set Audio Output audioqualityenhancementFunctionRelatedAttributebefore, must firstEnableforshould Audio Output Channel.

Example

None.

10.3.3.11. CVI_AO_GetVqeAttr

Description

Get Audio Output audioqualityenhancementFunctionRelatedAttribute.

Syntax

CVI_S32 CVI_AO_GetVqeAttr(AUDIO_DEV AoDevId, AO_CHN AoChn, AO_VQE_CONFIG_S *pstVqeConfig);

Parameters

Parameter Name	Description	Input/Output
AoDevId	AudioDevice number. Device numberPreset to0, Unless customization requires expansion, Setexceeds2, returns an error.	Input
AoChn	Audio output channel number	Input
pstVqeConfig	Audio Output voice quality enhancement configuration structure pointer	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libssp.so, libcvi_RES1.so, libcvi_vqe.so

Precautions

• GetaudioqualityenhancementFunctionRelatedAttributebeforemust firstSetRelativeshould Audio Output ChannelaudioqualityenhancementFunctionRelatedAttribute

Example

None.

10.3.3.12. CVI_AO_EnableVqe

Description

Enable Audio Output audioqualityenhancementFunction.

Syntax

CVI_S32 CVI_AO_EnableVqe(AUDIO_DEV AoDevId, AO_CHN AoChn);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
AoChn	Audio output channel number.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libssp.so, libcvi_RES1.so, libcvi_vqe.so

Precautions

• EnableaudioqualityenhancementFunctionbeforemust firstEnableRelativeshouldAudio OutputChannel.

• Disable Audio Output Channelafter, If againEnable Audio Output Channel, andUseaudioqualityenhancementFunction, need toCallthis InterfaceagainEnableaudioqualityenhancementFunction.

Example

None.

10.3.3.13. CVI_AO_DisableVqe

Description

Disable Audio Output audioqualityenhancementFunction.

Syntax

CVI_S32 CVI_AO_DisableVqe(AUDIO_DEV AoDevId, AO_CHN AoChn);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
AoChn	Audio output channel number.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libssp2.so, libcvi_RES1.so, libcvi_dnvqe.so

Precautions

• notthenUse AO audioqualityenhancementFunctiontime, shouldthisCallthisInterfacewillitsDisable.

Example

None.

10.3.3.14. CVI_AI_SetVqeVolume

Description

SetAudio input (AI) DeviceVolume.

Syntax

CVI_S32 CVI_AI_SetVqeVolume(AUDIO_DEV AiDevId, AI_CHN AiChn, CVI_S32 s32VolumeDb);

Parameters

Parameter Name	Description	Input/Output
AiDevId	AudioDevice number.	Input
AiChn	Audio input channel number.	Input
s32VolumeDb	Volumevalue, Unitis (dB).	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libssp.so, libcvi_RES1.so, libcvi_vqe.so

Precautions

• Call this interface after enabling AI VQE.

Example

None.

10.3.3.15. CVI_AI_GetVqeVolume

Description

GetAudio input (AI) DeviceVolume.

Syntax

CVI_S32 CVI_AI_GetVqeVolume(AUDIO_DEV AiDevId, AI_CHN AiChn, CVI_S32 *ps32VolumeDb);

Parameters

Parameter Name	Description	Input/Output
AiDevId	AudioDevice number.	Input
AiChn	Audio input channel number.	Input
ps32VolumeDb	used to storageGettoVolumevalue, Unitis (dB).	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libssp.so, libcvi_RES1.so, libcvi_vqe.so

Precautions

• Call this interface after enabling AI VQE.

Example

None.

10.3.3.16. CVI_AI_VqeFunConfig

Description

ConfigurationAudio input (AI) Deviceaudioqualityenhancement (VQE) Function.

Syntax

CVI_S32 CVI_AI_VqeFunConfig(AUDIO_DEV AiDevId, AI_CHN AiChn, int u32Mask);

Parameters

Parameter Name	Description	Input/Output
AiDevId	AudioDevice number.	Input
AiChn	Audio input channel number.	Input
u32Mask	FunctionConfigurationmask.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a, libssp.so, libcvi_RES1.so, libcvi_vqe.so

Precautions

• Call this interface after enabling AI VQE.

Example

None.

10.3.3.17. CVI_VQE_PathSelect

Description

VQE algorithmpathSet.

Syntax

CVI_S32 CVI_VQE_PathSelect(E_VQE_ALGO_PATH eVqePath);

Parameters

Parameter Name	Description	Input/Output
eVqePath	AudioDevice number. Device numberPreset to0, Unless customization requires expansion, Setexceeds2, returns an error.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.so, libssp.so, libcvi_vqe.so

Precautions

thisAPI onlyinSupportICundercanUse, Usetimeneed toinENABLEbeforeEnable.

Example

None.

10.3.4. Audio output

Audio output (Audio Output) mainimplementEnableAudio outputDevice, SendAudioFrametoOutputChanneletc.Function.

belowlistAPIanddetailscontent:

• CVI_AO_SetPubAttr: Set Audio Output Device attributes.

• CVI_AO_GetPubAttr: Get Audio Output Device attributes.

• CVI_AO_Enable: Enable Audio Output Device.

• CVI_AO_Disable: Disable Audio Output Device.

• CVI_AO_EnableChn: Enable Audio Output Channel.

• CVI_AO_DisableChn: Disable Audio Output Channel.

• CVI_AO_SendFrame: Send Audio Output AudioFrame.

• CVI_AO_EnableReSmp: Enable Audio Output resampling.

• CVI_AO_DisableReSmp: Disable Audio Output resampling.

• CVI_AO_PauseChn: currently Audio Output Channel.

• CVI_AO_ResumeChn: resume Audio Output Channel.

• CVI_AO_ClearChnBuf: Clear Audio Output ChannelincurrentAudioDataregionblock.

• CVI_AO_QueryChnStat: Query Audio Output ChannelincurrentAudioDataregionblockStatus.

• CVI_AO_SetTrackMode: Set Audio Output DeviceAudio ChannelMode.

• CVI_AO_GetTrackMode: Get Audio Output DeviceAudio ChannelMode.

• CVI_AO_SetVolume: Set Audio Output DeviceVolumeSize.

• CVI_AO_GetVolume: Get Audio Output DeviceVolumeSize.

• CVI_AO_SetMute: Set Audio Output DeviceMuteStatus.

• CVI_AO_GetMute: Get Audio Output DeviceMuteStatus.

• CVI_AO_SaveFile: EnableAudio outputsaveFileFunction. (beforeNot supportedthisFunction, caninCVI_AO_SendFramebeforefile saving);

• CVI_AO_ClrPubAttr: Clear Audio Output Device attributes.

• CVI_AO_SetStereoVolume: Set Audio Output DevicestereoVolume.

• CVI_AO_GetStereoVolume: Get Audio Output DevicestereoVolume.

10.3.4.1. CVI_AO_SetPubAttr

Description

Set Audio Output Device attributes

Syntax

CVI_S32 CVI_AO_SetPubAttr(AUDIO_DEV AoDevId,const AIO_ATTR_S *pstAttr);

Parameters

Parameter Name	Description	Input/Output
AoDevId	AudioDevice number. Device numberPreset to0, Unless customization requires expansion, Setexceeds2, returns an error.	Input
pstAttr	Audio outputDevice attributes.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• inSetAttributebeforeneed to Audio Output toDisableStatus, If toEnableStatusthenneed to firstDisable Audio Output Device.

• Audio Output mustand DA work withtocannormalOperation, Usermust DA SendDataFormatandChannelrelationshipcanfromcorrectChannelSendData.

• Audio Output DevicemainModetime, determine Audio Output DeviceOutputclockConfigurationisSample rate, samplingprecisionand ChannelCount, samplingprecisionwithChannelCountthat isis Audio Output Devicetimingonesecondarysamplingbit width.

• Audio Output DeviceAttribute StructurebodyinotherSee Audio Input ModuleMediumRelatedInterfaceDescription.

Example

None.

10.3.4.2. CVI_AO_GetPubAttr

Description

Get Audio Output Device attributes.

Syntax

CVI_S32 CVI_AO_GetPubAttr(AUDIO_DEV AoDevId, AIO_ATTR_S *pstAttr);

Parameters

Parameter Name	Description	Input/Output
AoDevId	AudioDevice number. Device numberPreset to0, Unless customization requires expansion, Setexceeds2, returns an error.	Input
pstAttr	Audio outputDevice attributesPointer.	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: ibcvi_audio.a

Precautions

• GetAttributeisbeforeonesecondaryConfigurationAttribute.

• If fromnot configuredAttribute, thenReturnAttributenot configuredError.

Example

CVI_S32 s32ret; AUDIO_DEV AoDevId = 0; AIO_ATTR_S stAttr; s32ret = CVI_AO_GetPubAttr(AoDevId, &stAttr); if(s32ret != CVI_SUCCESS) { printf("get ao %d attr err:0x%x\n", AoDevId,s32ret); return s32ret; }

10.3.4.3. CVI_AO_Enable

Description

Enable Audio Output Device.

Syntax

CVI_S32 CVI_AO_Enable(AUDIO_DEV AoDevId);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• requireinEnablebeforeConfiguration Audio Output Device attributes, otherwise, it returnsAttributenot configuredError.

• If Audio Output Devicealready enabled, thenconnectReturnSuccess.

Example

CVI_S32 i; CVI_S32 s32Ret; s32Ret = CVI_AO_SetPubAttr(AoDevId, pstAioAttr); if (s32Ret != CVI_SUCCESS) {  printf("%s: CVI_AO_SetPubAttr(%d) failed with %#x!\n", __func__,  AoDevId, s32Ret);  return CVI_FAILURE; } s32Ret = CVI_AO_Enable(AoDevId); if (s32Ret != CVI_SUCCESS) {  printf("%s: CVI_AO_Enable(%d) failed with %#x!\n", __func__, AoDevId,  s32Ret);  return CVI_FAILURE; } for (i = 0; i < s32AoChnCnt; i++) {  s32Ret = CVI_AO_EnableChn(AoDevId, i / (pstAioAttr->enSoundmode + 1));  if (s32Ret != CVI_SUCCESS) {  printf("%s: CVI_AO_EnableChn(%d) failed with %#x!\n", __func__, i,  s32Ret);  return CVI_FAILURE;  }  if (bResampleEn == CVI_TRUE) {  s32Ret = CVI_AO_DisableReSmp(AoDevId, i);  s32Ret |= CVI_AO_EnableReSmp(AoDevId, i, enInSampleRate);  if (s32Ret != CVI_SUCCESS) {  printf("%s: CVI_AO_EnableReSmp(%d,%d) failed with %#x!\n", __func__,  AoDevId, i, s32Ret);  return CVI_FAILURE;  }  } } s32Ret = CVI_AO_EnableChn(AoDevId, AO_SYSCHN_CHNID); if (s32Ret != CVI_SUCCESS) {  printf("%s: CVI_AO_EnableChn(%d) failed with %#x!\n", __func__, i,  s32Ret);  return CVI_FAILURE; }

10.3.4.4. CVI_AO_Disable

Description

Audio Output Device.

Syntax

CVI_S32 CVI_AO_Disable(AUDIO_DEV AoDevId);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

Disable Audio Output Devicebeforemust firstDisableDeviceunderthehas Audio Output Channel.

Example

None.

10.3.4.5. CVI_AO_EnableChn

Description

Enable Audio Output Channel.

Syntax

CVI_S32 CVI_AO_EnableChn(AUDIO_DEV AoDevId, AO_CHN AoChn);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
AoChn	Audio Output channel number. The supported channel range is determined by the maximum channel count u32ChnCnt in the Audio Output device attributes and the Audio Channel mode enSoundmode.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

Enable Audio Output Channelbefore, must firstEnableitsthe Audio Output Device, otherwise, it returnsDevicenotbootError Codes

Example

None.

10.3.4.6. CVI_AO_DisableChn

Description

Disable Audio Output Channel.

Syntax

CVI_S32 CVI_AO_DisableChn(AUDIO_DEV AoDevId, AO_CHN AoChn);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
AoChn	Audio Output channel number. The supported channel range is determined by the maximum channel count u32ChnCnt in the Audio Output device attributes and the Audio Channel mode enSoundmode.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

None.

Example

None.

10.3.4.7. CVI_AO_SendFrame

Description

Send Audio Output audio frame.

Syntax

CVI_S32 CVI_AO_SendFrame(AUDIO_DEV AoDevId, AO_CHN AoChn, const AUDIO_FRAME_S *pstData, CVI_S32 s32MilliSec);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
AoChn	Audio output channel number. SupportChannelRangeby Audio Output DescriptioninDevice attributesinMaximumChannelCountu32ChnCntdeterminewithAudio ChannelMode enSoundmode determine.	Input
pstData	AudioFrameStructurePointer.	Input
s32MilliSec	SendDataTimeouttime -1 meansblockingMode; 0Descriptioninmeansnon-blockingMode; >0 indicates blocking for s32MilliSec milliseconds; a timeout returns an error.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• thisInterfaceused to UsermainSendAudioFrameto Audio Output Output.

• Audio Output ChannelalreadythroughSystem Binding CVI_SYS_Bind) Interfacewith Audio Input or ADEC Bind, notneed toalsonotrecommendthisInterface.

• CallthisInterfaceSendAudioFrameto Audio Output Outputtime, must firstEnableforshould Audio Output Channel.

Example

None.

10.3.4.8. CVI_AO_SetStereoVolume

Description

SetAudio outputChannelVolume.

Syntax

CVI_S32 CVI_AO_SetStereoVolume(AUDIO_DEV AoDevId, CVI_S32 AoStereoId, CVI_S32 s32Volume);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio outputDevice number.	Input
AoStereoId	Audio Output Audio Channel number.	Input
s32Volume	Volumevalue, Value Range: [0, 32].	Input

Return Value

Return Value	Description
0	Success.
Non-zero	Failure; seeError Codes.

Requirements

• Header files: cvi_ao.h

• Library files: libao.a

Note

• AoStereoId 0: generationTableSetleftAudio ChannelVolumevalue. 1: generationTableSetrightAudio ChannelVolumevalue.

Example

None

10.3.4.9. CVI_AO_GetStereoVolume

Description

GetAudio outputChannelVolume.

Syntax

CVI_S32 CVI_AO_GetStereoVolume(AUDIO_DEV AoDevId, CVI_S32 AoStereoId, CVI_S32 *ps32Volume);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio outputDevice number.	Input
AoStereoId	Audio Output Audio Channel number.	Input
ps32Volume	VolumevaluePointer, Value Range: [0, 32].	Output

Return Value

Return Value	Description
0	Success.
Non-zero	Failure; seeError Codes.

Requirements

• Header files: cvi_ao.h

• Library files: libao.a

Note

• AoStereoId 0: generationTableGetleftAudio ChannelVolumevalue. 1: generationTableGetrightAudio ChannelVolumevalue.

Example

None

10.3.4.10. CVI_AO_EnableReSmp

Description

Enable Audio Output resampling.

Syntax

CVI_S32 CVI_AO_EnableReSmp(AUDIO_DEV AoDevId, AO_CHN AoChn, AUDIO_SAMPLE_RATE_E enInSampleRate);

Parameters

Parameter Name	Description	Input/Output
AoDevId	AudioDevice number.Device numberPreset to0, in notrequireunder, Setexceeds2, returns an error.	Input
AoChn	Audio output channel number. SupportChannelRangeby Audio Output DescriptioninDevice attributesinMaximumChannelCount u32ChnCntdeterminewithAudio ChannelMode enSoundmode determine.	Input
enInSampleRate	AudioresamplingInputSample rate.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• inUseCVI_AUD_SYS_BindStatusunder, Not supportedthisAPI

• shouldthisinEnable Audio Output Channelafter that, Bind Audio Output Channelbefore, CallthisInterfaceEnableresamplingFunction.

• repeatEnableresamplingFunction, butmust ensureafterConfigurationresamplingInputSample ratewithbeforeConfiguration resamplingInputSample rateone.

• inDisable Audio Output Channelafter, If againEnable Audio Output Channel, andUseresamplingFunction, need toCallthisInterface againEnableresampling.

• Audio Output resamplingInputSample ratemustwith Audio Output Device attributesConfigurationSample ratenotsame.

Example

None.

10.3.4.11. CVI_AO_DisableReSmp

Description

Disable Audio Output resampling.

Syntax

CVI_S32 CVI_AO_DisableReSmp(AUDIO_DEV AoDevId, AO_CHN AoChn);

Parameters

Parameter Name	Description	Input/Output
AoDevId	AudioDevice number. Device numberPreset to0, Unless customization requires expansion, Setexceeds2, returns an error.	Input
AoChn	Audio output channel number. SupportChannelRangeby Audio OutputDescriptioninDevice attributesinMaximumChannelCount u32ChnCntdeterminewithAudio ChannelMode enSoundmodedetermine.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

notthenUse Audio Output resamplingFunction, shouldthisCallthisInterfacewillitsDisable

Example

None.

10.3.4.12. CVI_AO_PauseChn

Description

currently Audio Output Channel.

Syntax

CVI_S32 CVI_AO_PauseChn(AUDIO_DEV AoDevId, AO_CHN AoChn);

Parameters

Parameter Name	Description	Input/Output
AoDevId	AudioDevice number. Device numberPreset to0, Unless customization requires expansion, Setexceeds2, returns an error.	Input
AoChn	Audio Output channel number. The supported channel range is determined by the maximum channel count u32ChnCnt in the Audio Output device attributes and the Audio Channel mode enSoundmode.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

Audio Output Channelcurrentlyafter, If Bind ADEC ChanneltothisChannelSendAudioFrameData, SendAudioFrameDatawillwillbeblocking; whileIf Bind Audio Input ChanneltothisChannelSendAudioFrameData, in ChannelnotfullcaseunderthenwillAudioFrameinBuffer, infullcaseunderthenwillAudioFramediscard.

Audio Output ChannelisDisableStatustime, notCallthisInterfacecurrently Audio Output Channel.

Example

None.

10.3.4.13. CVI_AO_ResumeChn

Description

resume Audio Output Channel.

Syntax

CVI_S32 CVI_AO_ResumeChn(AUDIO_DEV AoDevId, AO_CHN AoChn);

Parameters

Parameter Name	Description	Input/Output
AoDevId	AudioDevice number. Device numberPreset to0, Unless customization requires expansion, Setexceeds2, returns an error.	Input
AoChn	Audio Output channel number. The supported channel range is determined by the maximum channel count u32ChnCnt in the Audio Output device attributes and the Audio Channel mode enSoundmode.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• Audio Output ChannelcurrentlyaftercanthroughCallthisInterfaceagainresume

• Audio Output ChanneliscurrentlyStatusorEnableStatusunder, CallthisInterfaceReturnSuccess; otherwiseCallwillreturns an error

Example

None.

10.3.4.14. CVI_AO_ClearChnBuf

Description

Clear Audio Output ChannelincurrentAudioDataregionblock.

Syntax

CVI_S32 CVI_AO_ClearChnBuf(AUDIO_DEV AoDevId, AO_CHN AoChn);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
AoChn	Audio Output channel number. The supported channel range is determined by the maximum channel count u32ChnCnt in the Audio Output device attributes and the Audio Channel mode enSoundmode.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• Call this interface after the Audio Output channel has been successfully enabled.

• iscompletelyClearDecodingplaybackpathonthehasregionblockData, thisInterfaceshouldthiswith CVI_ADEC_ClearChnBuf Interfacework withUse.

• notrecommendedUse

Example

None.

10.3.4.15. CVI_AO_QueryChnStat

Description

Query Audio Output ChannelincurrentAudioDataregionblockStatus.

Syntax

CVI_S32 CVI_AO_QueryChnStat(AUDIO_DEV AoDevId, AO_CHN AoChn, AO_CHN_STATE_S *pstStatus);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
AoChn	Audio Output channel number. The supported channel range is determined by the maximum channel count u32ChnCnt in the Audio Output device attributes and the Audio Channel mode enSoundmode.	Input
pstStatus	regionblockStatusStructurePointer.	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

Call this interface after the Audio Output channel has been successfully enabled.

Example

None.

10.3.4.16. CVI_AO_SetTrackMode

Description

Set Audio Output DeviceAudio ChannelMode.

Syntax

CVI_S32 CVI_AO_SetTrackMode(AUDIO_DEV AoDevId, AUDIO_TRACK_MODE_E enTrackMode);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
enTrackMode	AudioDeviceAudio ChannelMode.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• Call this interface after the Audio Output device has been successfully enabled.

• Audio Output DeviceOperationin I2S Modetime, SupportSetAudio ChannelMode, PCM ModeunderNot supported.

Example

CVO_S32 s32Ret; AUDIO_DEV AoDev = 0; AUDIO_TRACK_MODE_E enTrackMode = AUDIO_TRACK_NORMAL; AUDIO_TRACK_MODE_E temp; s32Ret = CVI_AO_SetTrackMode(AoDev, enTrackMode); if (CVI_SUCCESS != s32Ret) { printf("Ao set track mode failure! AoDev: %d, enTrackMode: %d, s32Ret: 0x%x.\n", AoDev, enTrackMode, s32Ret); return s32Ret; } s32Ret = CVI_AO_GetTrackMode(AoDev, &temp); if (s32Ret!=CVI_SUCCESS) { printf("Ao get track mode failure! AoDev: %d, s32Ret: 0x%x.\n", AoDev, s32Ret); return s32Ret; }

10.3.4.17. CVI_AO_GetTrackMode

Description

Get Audio Output DeviceAudio ChannelMode.

Syntax

CVI_S32 CVI_AO_GetTrackMode(AUDIO_DEV AoDevId, AUDIO_TRACK_MODE_E *penTrackMode);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
enTrackMode	AudioDeviceAudio ChannelMode.	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• Call this interface after the Audio Output device has been successfully enabled.

• Audio Output DeviceOperationin I2S Modetime, SupportGetAudio ChannelMode, PCM ModeunderNot supported.

Example

None.

10.3.4.18. CVI_AO_SetVolume

Description

Set Audio Output DeviceVolumeSize.

Syntax

CVI_S32 CVI_AO_SetVolume(AUDIO_DEV AoDevId, CVI_S32 s32VolumeDb);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
s32VolumeDb	VolumeRangeis[32~0], forshouldgain [0d - 22.5dB], eachonestep1.5dB.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• Call this interface after the Audio Output device has been successfully enabled.

Example

None.

10.3.4.19. CVI_AO_GetVolume

Description

Get Audio Output DeviceVolumeSize.

Syntax

CVI_S32 CVI_AO_GetVolume(AUDIO_DEV AoDevId, CVI_S32 *ps32VolumeDb);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
ps32VolumeDb	AudioDeviceVolumeSizePointer. VolumeRangeis[32~0], forshouldgain [0dB ~ -22.5dB], eachonestep1.5dB.	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

Call this interface after the Audio Output device has been successfully enabled.

Example

None.

10.3.4.20. CVI_AO_SetMute

Description

Set Audio Output DeviceMuteStatus.

Syntax

CVI_S32 CVI_AO_SetMute(AUDIO_DEV AoDevId, CVI_BOOL bEnable, const AUDIO_FADE_S *pstFade);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
bEnable	AudioDeviceWhetherEnableMute. CVI_TRUE: EnableMuteFunction; CVI_FALSE: CloseMuteFunction	Input
pstFade	Fade-in/fade-out structure pointer.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• Call this interface after the Audio Output device has been successfully enabled.

Example

None.

10.3.4.21. CVI_AO_GetMute

Description

Get Audio Output DeviceMuteStatus.

Syntax

CVI_S32 CVI_AO_GetMute(AUDIO_DEV AoDevId, CVI_BOOL *pbEnable, AUDIO_FADE_S *pstFade);

Parameters

Parameter Name	Description	Input/Output
AoDevId	Audio device number. The device number is preset to 0. Unless customization requires expansion, setting it above 2 returns an error.	Input
bEnable	AudioDeviceMuteStatusPointer.	Output
pstFade	Fade-in/fade-out structure pointer.	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• Call this interface after the Audio Output device has been successfully enabled.

Example

None.

10.3.4.22. CVI_AO_SaveFile

Description

beforeNot supportedthisFunction, UsercanthroughCVI_AO_SendFramebeforefile saving.

Syntax

CVI_S32 CVI_AO_SaveFile(AUDIO_DEV AoDevId, AO_CHN AoChn, AUDIO_SAVE_FILE_INFO_S* pstSaveFileInfo);

Parameters

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

Precautions

Example

None.

10.3.4.23. CVI_AO_ClrPubAttr

Description

Clear Audio Output Device attributes.

Syntax

CVI_S32 CVI_AO_ClrPubAttr(AUDIO_DEV AoDevId);

Parameters

Parameter Name	Description	Input/Output
AoDevId	AudioDevice number. Device numberPreset to0, Unless customization requires expansion, Setexceeds2, returns an error.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• Stop the device before clearing device attributes.

• Audio Input DeviceandAudio Output DeviceclockNoneneed toSet.

Example

None.

10.3.5. Audio encoding

AENCModuleprovidewithunderAPIs:

• CVI_AENC_CreateChn: CreateAudioEncoding channel.

• CVI_AENC_DestroyChn: DestroyAudioEncoding channel.

• CVI_AENC_SendFrame: SendAudio encodingAudioFrame

• CVI_AENC_GetStream: GetAudio encodingBitstream.

• CVI_AENC_ReleaseStream: ReleaseAudio encodingBitstream.

• CVI_AENC_SaveFile: EnableAudio encodingbeforeChannelstorageFileFunction.

• CVI_AENC_GetStreamBufInfo: GetAudioBitstream buffer RelatedInformation.

• CVI_AENC_SetMute: SetAENCMuteStatus.

• CVI_ADEC_GetMute: GetAENCMuteStatus.

10.3.5.1. CVI_AENC_CreateChn

Description

CreateAudioEncoding channel.

Syntax

CVI_S32 CVI_AENC_CreateChn(AENC_CHN AeChn, const AENC_CHN_ATTR_S *pstAttr);

Parameters

Parameter Name	Description	Input/Output
AeChn	Encoding device channel number. Value range: [0, AENC_MAX_CHN_NUM]	Input
pstAttr	Encoding channelAttributePointer	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_comm_aenc.h

• Library files: libcvi_audio.a, libcvi_VoiceEngine.so, libcvi_RES1.so

Precautions

• beforeSupport G711, G726, ADPCM

• SupportInputpcm audio frame, audioFormat(format)Support16 bitsend(S16LE)itsNot supported, UsetimepleasesynchronizationwillAudio Input attribute/AENC attribute performforshouldSet, ifinVQEofafterUse, pleasewillaudio frameLengthsetis160timesnumber, withdescriptorcombinedCvitek VQE.

• Audio encodingpartAttributeneed towithInputAudioDataAttributematch, For exampleSample rate, Frame (each FramesamplingpointCount) etc.

• buffer SizewithFrameas the unit, Value Rangeis[2, MAX_BUFFERING_DEPTH], It is recommended to Configuration is 10 withon, buffer ConfigurationcancancauseFrameetc.abnormal.

Example

None.

10.3.5.2. CVI_AENC_DestroyChn

Description

DestroyAudio encoding.

Syntax

CVI_S32 CVI_AENC_DestroyChn(AENC_CHN AeChn);

Parameters

Parameter Name	Description	Input/Output
AeChn	Encoding device channel number. Value range: [0, AENC_MAX_CHN_NUM]	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_comm_aenc.h

• Library files: libcvi_audio.a, libcvi_VoiceEngine.so, libcvi_RES1.so

Precautions

• Channelifnot created, thenCallthisfunctionInvalid.

• If currentlyinGet/ReleaseBitstreamoruserSendFrametimeDestroythisChannel, thenwillReturnFailure, Usersynchronizationprocessingtimeneed toNote.

Example

None.

10.3.5.3. CVI_AENC_SendFrame

Description

SendAudio encodingAudioFrame.

Syntax

CVI_S32 CVI_AENC_SendFrame(AENC_CHN AeChn, const AUDIO_FRAME_S *pstFrm, const AEC_FRAME_S *pstAecFrm);

Parameters

Parameter Name	Description	Input/Output
AeChn	Encoding device channel number. Value range: [0, AENC_MAX_CHN_NUM]	Input
pstFrm	AudioFrameStructurePointer.	Input
pstAecFrm	Echo CancellationReferenceFrameStructurePointer.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_comm_aenc.h

• Library files: libcvi_audio.a, libcvi_VoiceEngine.so, libcvi_RES1.so

Precautions

• Channelifnot created, callthisfunctionInvalid.

• If notneed toEcho Cancellation, pstAecFrm cansetis NULL.

• thisInterfaceused to UsermainSendAudioFrameperform Encoding, If AENC ChannelalreadythroughSystem BindingInterfacewith Audio Input Bind, notneed toalsonotrecommendthisInterface.

Example

s32Ret = CVI_AI_GetChnParam(AiDev, AiChn, &stAiChnPara); if (s32Ret != CVI_SUCCESS) {  printf("%s: Get ai chn param failed\n", __func__);  return NULL; } stAiChnPara.u32UsrFrmDepth = 10; s32Ret = CVI_AI_SetChnParam( AiDev, AiChn, &stAiChnPara); if (s32Ret != CVI_SUCCESS) {  printf("%s: set ai chn param failed\n", __func__);  return NULL; } while ( 1) {  /* get frame from ai chn */  memset(&stAecFrm, 0, sizeof(AEC_FRAME_S));  s32Ret = CVI_AI_GetFrame( AiDev, AiChn, &stFrame,  &stAecFrm, CVI_FALSE);  if (s32Ret != CVI_SUCCESS) {  printf("CVI_AI_GetFrame none!!\n");  continue;  }  /* send frame to encoder */  if ( bSendAenc == CVI_TRUE) {  s32Ret = CVI_AENC_SendFrame( AencChn, &stFrame, &stAecFrm);  if (s32Ret != CVI_SUCCESS) {  printf("%s: CVI_AENC_SendFrame(%d), failed with %#x!\n",  __func__, AencChn, s32Ret);  bStart = CVI_FALSE;  return NULL;  }  }  /* send frame to ao */  /* If owner toggle bSendAenc, do not toggle bSendAo */  /* You cannot send encode frame to CVI_AO_SendFrame */  /* It cannot play out encode frame by only AO_SendFrame*/  if ( bSendAo == CVI_TRUE) {  s32Ret = CVI_AO_SendFrame( AoDev, AoChn, &stFrame, 1000);  if (s32Ret != CVI_SUCCESS) {  printf("%s: CVI_AO_SendFrame(%d, %d), failed with %#x!\n",  __func__, AoDev, AoChn, s32Ret);  bStart = CVI_FALSE;  return NULL;  }  }  /* finally you must release the stream */  s32Ret = CVI_AI_ReleaseFrame( AiDev, AiChn, &stFrame,  &stAecFrm);  if (s32Ret != CVI_SUCCESS) {  printf("%s: CVI_AI_ReleaseFrame(%d, %d), failed with %#x!\n",  __func__, AiDev, AiChn, s32Ret);  bStart = CVI_FALSE;  return NULL;  } }

10.3.5.4. CVI_AENC_GetStream

Description

GetEncodingafterBitstream.

Syntax

CVI_S32 CVI_AENC_GetStream(AENC_CHN AeChn, AUDIO_STREAM_S *pstStream, CVI_S32 s32MilliSec);

Parameters

Parameter Name	Description	Input/Output
AeChn	Encoding device channel number. Value range: [0, AENC_MAX_CHN_NUM]	Input
pstStream	GetAudioBitstream.	Output
s32MilliSec	GetData timeout -1 indicates blocking mode and waits indefinitely when there is no data; 0meansnon-blockingMode, NoneDatatimethenReturn; >0 indicates blocking for s32MilliSec milliseconds; a timeout returns an error.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_comm_aenc.h

• Library files: libcvi_audio.a, libcvi_VoiceEngine.so, libcvi_RES1.so

Precautions

• mustCreateChannelaftercancanGetBitstream, otherwiseconnectReturnFailure, If inGetBitstreamprocessin ChannelthenwillReturnFailure.

• s32MilliSec valuemustgreater thanetc.to-1, etc.to-1 timeusingblockingModeGetData, etc.to 0 time non-blockingModeGetData, greater than 0 time, blocking s32MilliSec millisecondsafter, nothasDatathenReturnTimeoutand.

Example

None.

10.3.5.5. CVI_AENC_ReleaseStream

Description

ReleasefromAudioEncoding channelGetBitstream.

Syntax

CVI_S32 CVI_AENC_ReleaseStream(AENC_CHN AeChn, const AUDIO_STREAM_S *pstStream);

Parameters

Parameter Name	Description	Input/Output
AeChn	Encoding device channel number. Value range: [0, AENC_MAX_CHN_NUM]	Input
pstStream	GetAudioBitstreamofPointer.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_comm_aenc.h

• Library files: libcvi_audio.a, libcvi_VoiceEngine.so, libcvi_RES1.so

Precautions

• BitstreamcanenoughinUsecompleteofafterthat isRelease, If notandtimeRelease, willcauseEncodingprocessblocking.

• ReleaseBitstreammustisfromthisChannelGetBitstream, notforBitstreamInformationStructureperform anymodify, otherwisewillcauseBitstreamnotcanRelease, makethisBitstream buffer lost, tocauseprogramabnormal.

• ReleaseBitstreamtimemust ensureChannelalreadybeCreate, otherwiseconnectReturnFailure, If inReleaseBitstreamprocess MediumDestroyChannelthenwillReturnFailure.

Example

None.

10.3.5.6. CVI_AENC_SaveFile

Description

EnableAudio encodingbeforeChannelstorageFileFunction.

Syntax

CVI_S32 CVI_AENC_SaveFile(AENC_CHN AeChn, const AUDIO_SAVE_FILE_INFO_S *pstSaveFileInfo);

Parameters

Parameter Name	Description	Input/Output
AeChn	AudioEncoding channel number. Value Range: [0, AENC_MAX_CHN_NUM].	Input
pstSaveFileInfo	Audio save-file attribute structure pointer.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_comm_aenc.h

• Library files: libcvi_audio.a, libcvi_VoiceEngine.so, libcvi_RES1.so

Precautions

• Cvitek notthisAPI.

• pleaseUse CVI_AI_SaveFile.

Example

None.

10.3.5.7. CVI_AENC_GetStreamBufInfo

Description

GetAudioBitstream buffer RelatedInformation.

Syntax

CVI_S32 CVI_AENC_GetStreamBufInfo(AENC_CHN AeChn, CVI_U32 *pu32PhysAddr, CVI_U32 *pu32Size);

Parameters

Parameter Name	Description	Input/Output
AeChn	AudioEncoding channel number. Value Range: [0, AENC_MAX_CHN_NUM].	Input
pu32PhysAddr	AudioBitstream buffer PhysicalAddress.	Output
pu32Size	AudioBitstream buffer Length, with byte as the unit	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_comm_aenc.h

• Library files: libcvi_audio.a, libcvi_VoiceEngine.so, libcvi_RES1.so

Precautions

None.

Example

None.

10.3.5.8. CVI_AENC_SetMute

Description

SetAENCMuteStatus

Syntax

CVI_AENC_SetMute (AENC_CHN AeChn, CVI_BOOL bEnable);

Parameters

Parameter Name	Description	Input/Output
AeChn	Encoding device channel number. Value range: [0, AENC_MAX_CHN_NUM]	Input
bEnable	AudioDeviceWhetherEnableMute. CVI_TRUE: EnableMuteFunction; CVI_FALSE: CloseMuteFunction	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• Use only after creating the AENC device signal channel

Example

None.

10.3.5.9. CVI_AENC_GetMute

Description

toAENCDeviceMuteStatus

Syntax

CVI_AENC_GetMute(AENC_CHN AeChn, CVI_BOOL *pbEnable);

Parameters

Parameter Name	Description	Input/Output
AeChn	Encoding device channel number. Value range: [0, AENC_MAX_CHN_NUM]	Input
pbEnable	AudioDeviceaudioStatusPointer	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_audio.h

• Library files: libcvi_audio.a

Precautions

• Use only after creating the AENC device signal channel

Example

None.

10.3.6. Audio decoding

Audio decodingmainimplementCreateDecoding channel, SendAudioBitstreamDecodingandGetDecodingafterAudioFrameetc.Function.

belowSupportAPIanddetailscontent:

• CVI_ADEC_CreateChn: CreateAudioDecoding channel.

• CVI_ADEC_DestroyChn: DestroyAudioDecoding channel.

• CVI_ADEC_SendStream: SendAudioBitstreamtoAudioDecoding channel.

• CVI_ADEC_ClearChnBuf: Clear ADEC ChannelincurrentAudioDataregionblock.

• CVI_ADEC_GetFrame: GetAudio decodingFrameData.

• CVI_ADEC_ReleaseFrame: ReleaseAudio decodingFrameData.

• CVI_ADEC_SendEndOfStream: Send the end marker to the decoder and clear the bitstream buffer.

10.3.6.1. CVI_ADEC_CreateChn

Description

CreateAudioDecoding channel.

Syntax

CVI_S32 CVI_ADEC_CreateChn(ADEC_CHN AdChn, const ADEC_CHN_ATTR_S *pstAttr);

Parameters

Parameter Name	Description	Input/Output
AdChn	Channel number. Value Range: [0, ADEC_MAX_CHN_NUM].	Input
pstAttr	Channel attributesPointer.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_comm_adec.h

• Library files: libcvi_audio.a, libcvi_VoiceEngine.so, libcvi_RES1.so

Precautions

• beforeSupport G711, G726, ADPCM.

• Audio decodingpartAttributeneed towithOutputDevice attributesmatch, For exampleSample rate, Frame (eachFramesampling pointCount) etc.

Example

None.

10.3.6.2. CVI_ADEC_DestroyChn

Description

DestroyAudioDecoding channel.

Syntax

CVI_S32 CVI_ADEC_DestroyChn(ADEC_CHN AdChn);

Parameters

Parameter Name	Description	Input/Output
AdChn	Channel number. Value Range: [0, ADEC_MAX_CHN_NUM].	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_comm_adec.h

• Library files: libcvi_audio.a, libcvi_VoiceEngine.so, libcvi_RES1.so

Precautions

• Channelnot createdcaseunderCallthisInterfacewillReturnSuccess.

• If currentlyinGet/ReleaseBitstreamoruserSendFrame, DestroythisChannelthentheseoperationwillthat isReturnFailure.

Example

None.

10.3.6.3. CVI_ADEC_SendStream

Description

toAudioDecoding channelSendBitstream.

Syntax

CVI_S32 CVI_ADEC_SendStream(ADEC_CHN AdChn, const AUDIO_STREAM_S *pstStream, CVI_BOOL bBlock);

Parameters

Parameter Name	Description	Input/Output
AdChn	Channel number. Value Range: [0, ADEC_MAX_CHN_NUM].	Input
pstStream	AudioBitstream	Input
bBlock	CVI_TRUE: blocking. CVI_FALSE: non-blocking.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_comm_adec.h

• Library files: libcvi_audio.a, libcvi_VoiceEngine.so, libcvi_RES1.so

Precautions

• stream Methodused to notdetermineBitstreampacketisoneFrame(greater thanetc.tooneFrame)caseunder, effectivelow, andcancanwillhasdelay

• SendDatatimemust ensureChannelalreadybeCreate, otherwiseconnectReturnFailure, If insendDataprocessin DestroyChannelthenwillReturnFailure.

• ensureSendgive ADEC ChannelBitstreamDatacorrectness, otherwisecancanDecodingdeviceabnormalexit.

Example

None.

10.3.6.4. CVI_ADEC_ClearChnBuf

Description

Clear ADEC ChannelincurrentAudioDataregionblock.

Syntax

CVI_S32 CVI_ADEC_ClearChnBuf(ADEC_CHN AdChn);

Parameters

Parameter Name	Description	Input/Output
AdChn	Channel number. Value Range: [0, ADEC_MAX_CHN_NUM].	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_comm_adec.h

• Library files: libcvi_audio.a, libcvi_VoiceEngine.so, libcvi_RES1.so

Precautions

• requireDecoding channelalreadybeCreate.

• UsethisInterfacetime, notrecommendUse stream MethodDecoding. Use stream MethodDecodingperform Clearregionblocktime, Userneed toensureClearcompleteregionblockafter, SendgiveDecodingdeviceDatamustiscompleteoneFrameBitstream, otherwisecancancauseDecodingdevicenotcannormalOperation.

• NoneWhetherUse streamMethodDecoding, ensuresendDataDecodingoperationandClearregionblockoperationbetweensynchronization.

Example

None.

10.3.6.5. CVI_ADEC_GetFrame

Description

Getdecodingafteraudio frame.

Syntax

CVI_S32 CVI_ADEC_GetFrame(ADEC_CHN AdChn, AUDIO_FRAME_INFO_S *pstFrmInfo, CVI_BOOL bBlock);

Parameters

Parameter Name	Description	Input/Output
AdChn	AudioDecoding channel.	Input
pstFrmInfo	AudioFrameDataStructure.	Output
bBlock	WhetherwithblockingMethodGet.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_comm_adec.h

• Library files: libcvi_audio.a, libcvi_VoiceEngine.so, libcvi_RES1.so

Precautions

• mustin ADEC Channelafter creationCall

• UsethisInterfaceGetDecodingFrameDatatime, It is recommended to SendBitstreamtimepressFrameSend

• UsethisInterfaceGetAudioDatatime, pleaserelease ADEC with Audio Output Binding Relationships, otherwiseGettoFrame isnotcontinuous.

• UsethisInterfaceGetAudioFrameDatatime, If SendBitstreampressstreamSend, pleaseGetDecodingFrame Dataandtimeness, otherwisewillhasabnormal.

Example

None.

10.3.6.6. CVI_ADEC_ReleaseFrame

Description

ReleaseGettoAudio decodingFrameData.

Syntax

CVI_S32 CVI_ADEC_ReleaseFrame(ADEC_CHN AdChn, AUDIO_FRAME_INFO_S *pstFrmInfo);

Parameters

Parameter Name	Description	Input/Output
AdChn	AudioDecoding channel.	Input
pstFrmInfo	AudioFrameDataStructure.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_comm_adec.h

• Library files: libcvi_audio.a, libcvi_VoiceEngine.so, libcvi_RES1.so

Precautions

• thisInterfacemustwithInterface CVI_ADEC_GetFrame work withUse.

• mustin ADEC Channelafter creationCall.

Example

None.

10.3.6.7. CVI_ADEC_SendEndOfStream

Description

Send the end marker to the decoder and clear the bitstream buffer.

Syntax

CVI_S32 CVI_ADEC_SendEndOfStream (ADEC_CHN AdChn, CVI_BOOL bInstant);

Parameters

Parameter Name	Description	Input/Output
AdChn	AudioDecoding channel.	Input
bInstant	Whetherthat isClearDecodingdeviceinternalregionblockData. Value Range: CVI_FALSE: timeClear. notwillthat isClearDecodingdeviceinternalcacheData, Decodingwillperform, toremainingbuffer notoneFrameDatatimeperform Clearoperation. CVI_TRUE: that isClearDecodingdeviceinternalregionblockData.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_comm_adec.h

• Library files: libcvi_audio.a, libcvi_VoiceEngine.so, libcvi_RES1.so

Precautions

None.

Example

None.

10.3.7. resampling

Resampler Moduleprovidesingleresamplingprocessing. When customerneed toinonlayerforDataresamplingtime, canUsethisModule.

withunderisRelatedAPIanddetailsDescription:

• CVI_Resampler_Create: Create a resamplingModule.

• CVI_Resampler_Process: resamplingModuleDataprocessing.

• CVI_Resampler_Destroy: DestroyresamplingModule.

• CVI_Resampler_GetMaxOutputNum: calculateresamplingMaximumOutputData.

10.3.7.1. CVI_Resampler_Create

Description

Create a resamplingModule.

Syntax

CVI_VOID* CVI_Resampler_Create(CVI_S32 s32Inrate, CVI_S32 s32Outrate, CVI_S32 s32Chans);

Parameters

Parameter Name	Description	Input/Output
s32Inrate	InputSample rate. Value Range: 8000, 11025, 12000, 16000, 22050, 24000, 32000, 44100, 48000, 64000.	Input
s32Outrate	OutputSample rate. Value Range: 8000, 11025, 12000, 16000, 22050, 24000, 32000, 44100, 48000, 64000.	Input
s32Chans	processingAudio Channelnumber(beforeCvitekSupportsingleAudio Channel)	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_resample_api.h

• Library files: libcvi_audio.a, libcvi_RES1.so

Precautions

InputSample rateandOutputSample rateneed tonotonecause.

Example

None.

10.3.7.2. CVI_Resampler_Process

Description

processingoneFrameresamplingData.

Syntax

CVI_S32 CVI_Resampler_Process(CVI_VOID* inst, CVI_S16* s16Inbuf, CVI_S32 s32Insamps, CVI_S16* s16Outbuf);

Parameters

Parameter Name	Description	Input/Output
inst	resamplingModulehandle.	Input
s16Inbuf	InputData buf Pointer.	Input
s32Insamps	InputDatasamplingpointnumber. Value Range: [0, 2048]	Input
s16Outbuf	OutputData buf Pointer	Output

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_resample_api.h

• Library files: libcvi_audio.a, libcvi_RES1.so

Precautions

MaximumInputsamplingpointnumberneed toless than 2048.

Example

None.

10.3.7.3. CVI_Resampler_Destroy

Description

Destroy a resamplingModuleexample.

Syntax

CVI_VOID CVI_Resampler_Destroy(CVI_VOID* inst);

Parameters

Parameter Name	Description	Input/Output
inst	resamplingModulehandle.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_resample_api.h

• Library files: libcvi_audio.a, libcvi_RES1.so

Precautions

None.

Example

None.

10.3.7.4. CVI_Resampler_GetMaxOutputNum

Description

GetMaximumOutputsamplingpointnumber (eachoneAudio Channel).

Syntax

CVI_S32 CVI_Resampler_GetMaxOutputNum(CVI_VOID* inst, CVI_S32 s32Insamps);

Parameters

Parameter Name	Description	Input/Output
inst	resamplingModulehandle.	Input
s32Insamps	eachoneAudio ChannelInputsamplingpointnumber.	Input

Return Value

Parameter Name	Description
0	Success.
Non-zero	Failure; its value is Error Codes.

Requirements

• Header files: cvi_comm_aio.h, cvi_audio.h, cvi_resample_api.h

• Library files: libcvi_audio.a, libcvi_RES1.so

Precautions

None.

Example

None.
