3. System Control

3.1. Functional Overview

System Controlpartcontain ISP public attributesconfiguration, Initialize ISP Firmware, Run ISP firmware, exit ISP firmware, Set ISP eachmoduleetc.function.

3.2. API Reference

thisdocumentationininterface, such asNonespecialdescription, not supportedmultipleenterprocess.

• CVI_ISP_MemInit : Initialize ISP externalregister.

• CVI_ISP_Init : Initialize ISP firmware.

• CVI_ISP_Run : Run ISP firmware.

• CVI_ISP_RunOnce : Run ISP firmware onetime.

• CVI_ISP_Exit : exit ISP firmware.

• CVI_ISP_SetPubAttr : Set ISP public attributes.

• CVI_ISP_GetPubAttr : Get ISP public attributes.

• CVI_ISP_SetFMWState : Set ISP firmware status.

• CVI_ISP_GetFMWState : Get ISP firmware status.

• CVI_ISP_SetModuleControl : settings ISP functionmodule Control.

• CVI_ISP_GetModuleControl : Get ISP functionmodule Control.

• CVI_ISP_GetVDTimeOut : Get ISP interruptinformation.

• CVI_ISP_SensorRegCallBack : ISP provide sensor Register callback interface.

• CVI_ISP_SensorUnRegCallBack : ISP provide sensor unregister callback interface.

• CVI_ISP_AELibRegCallBack : ISP provide AE libraryRegister callback interface.

• CVI_ISP_AELibUnRegCallBack : ISP provide AE libraryunregister callback interface.

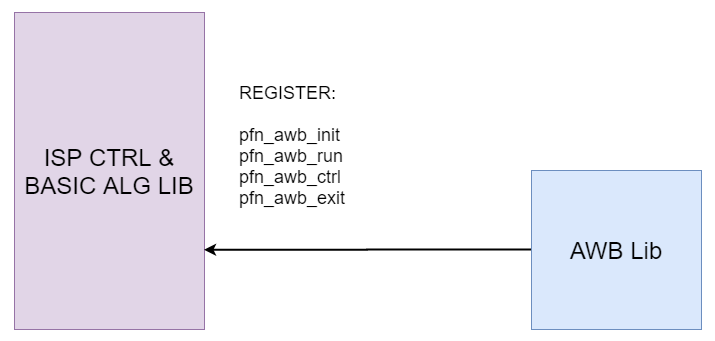

• CVI_ISP_AWBLibRegCallBack : ISP provide AWB libraryRegister callback interface.

• CVI_ISP_AWBLibUnRegCallBack : ISP provide AWB libraryunregister callback interface.

• CVI_ISP_AFLibRegCallBack : ISP provide AF libraryRegister callback interface.

• CVI_ISP_AFLibUnRegCallBack : ISP provide AF libraryunregister callback interface.

• CVI_ISP_SetBindAttr : Set ISP libraryand 3A library, sensor bindclosesystem.

• CVI_ISP_GetBindAttr : Get ISP libraryand 3A library, sensor bindclosesystem.

• CVI_ISP_SetCtrlParam : Set ISP Controlparameternumber.

• CVI_ISP_GetCtrlParam : Get ISP Controlparameternumber.

• CVI_ISP_SetModParam : Set ISP moduleparameternumber.

• CVI_ISP_GetModParam : Get ISP moduleparameternumber.

• CVI_BIN_SetBinName : SetPQBINstore pathanddocumentcomponentname

• CVI_BIN_GetBinName : GetPQBINstore pathanddocumentcomponentname

• CVI_BIN_GetBinExtraAttr : Getbinheadernumberdatainformation.

• CVI_BIN_GetBinTotalLen : Getbinnumberdata totallength.

• CVI_BIN_ExportBinData : willparameternumberstorePQBinfile.

• CVI_BIN_ImportBinData : fromPQBininparseallmodule numberdata.

• CVI_BIN_SaveParamToBin : willparameternumberstorePQBinfile.

• CVI_BIN_LoadParamFromBin : fromPQBininparseallmodule numberdata.

• CVI_ISP_IrAutoRunOnce : Runredoutsideautomaticswitchfunction.

• CVI_ISP_SetSmartInfo: Setintelligentrecognitionregioninformation.

• CVI_ISP_GetSmartInfo: Getintelligentrecognitionregioninformation.

• CVI_ISP_SetStitchAttr: SetISPstitchingparameternumber.

• CVI_ISP_GetStitchAttr: GetISPstitchingparameternumber.

• CVI_ISP_StitchCalibartion: ISP stitchingcalibration.

3.2.1. CVI_ISP_MemInit

[Description]

Initialize ISP externalregister.

[Syntax]

CVI_S32 CVI_ISP_MemInit(VI_PIPE ViPipe);

[Parameters]

Parameter Name	Description
ViPipe	ViPipe No.

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.so

[Note]

• This interface is not currently supported on the dual-system SDK linux side.

[Example]

None.

[Related Topics]

• CVI_ISP_Exit

3.2.2. CVI_ISP_Init

[Description]

Initialize ISP firmware.

[Syntax]

CVI_S32 CVI_ISP_Init(VI_PIPE ViPipe);

[Parameters]

Parameter Name	Description
ViPipe	ViPipe No.

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

None.

[Example]

None.

[Related Topics]

• CVI_ISP_Exit

3.2.3. CVI_ISP_Run

[Description]

Run ISP firmware.

[Syntax]

CVI_S32 CVI_ISP_Run(VI_PIPE ViPipe);

[Parameters]

Parameter Name	Description
ViPipe	ViPipe No.

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

• This interface is not currently supported on the dual-system SDK linux side.

[Example]

None.

[Related Topics]

None.

3.2.4. CVI_ISP_RunOnce

[Description]

Run ISP firmware onetime.

[Syntax]

CVI_S32 CVI_ISP_RunOnce(VI_PIPE ViPipe);

[Parameters]

Parameter Name	Description
ViPipe	ViPipe No.

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

• This interface is not currently supported on the dual-system SDK linux side.

[Example]

None.

[Related Topics]

None.

3.2.5. CVI_ISP_Exit

[Description]

exit ISP firmware.

[Syntax]

CVI_S32 CVI_ISP_Exit(VI_PIPE ViPipe);

[Parameters]

Parameter Name	Description
ViPipe	ViPipe No.

Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

None.

[Example]

None.

[Related Topics]

• CVI_ISP_Init

3.2.6. CVI_ISP_SetPubAttr

[Description]

Set ISP public attributes.

[Syntax]

CVI_S32 CVI_ISP_SetPubAttr(VI_PIPE ViPipe, const ISP_PUB_ATTR_S *pstPubAttr);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
pstPubAttr	ISP public attributes.	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

None.

[Example]

None.

[Related Topics]

• CVI_ISP_GetPubAttr

3.2.7. CVI_ISP_GetPubAttr

[Description]

Get ISP public attributes.

[Syntax]

CVI_S32 CVI_ISP_GetPubAttr(VI_PIPE ViPipe, ISP_PUB_ATTR_S  *pstPubAttr);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
pstPubAttr	ISP public attributes.	output

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

None.

[Example]

None.

[Related Topics]

• CVI_ISP_SetPubAttr

3.2.8. CVI_ISP_SetFMWState

[Description]

Set ISP firmware status.

[Syntax]

CVI_S32 CVI_ISP_SetFMWState(VI_PIPE ViPipe, const ISP_FMW_STATE_E enState);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
enState	ISP firmware status.	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

None.

[Example]

None.

[Related Topics]

• CVI_ISP_GetFMWState

3.2.9. CVI_ISP_GetFMWState

[Description]

Get ISP firmware status.

[Syntax]

CVI_S32 CVI_ISP_GetFMWState(VI_PIPE ViPipe, ISP_FMW_STATE_E *penState);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
enState	ISP firmware status.	output

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

None.

[Example]

None.

[Related Topics]

• CVI_ISP_SetFMWState

3.2.10. CVI_ISP_SetModuleControl

[Description]

settings ISP functionmodule Control.

[Syntax]

CVI_S32 CVI_ISP_SetModuleControl(VI_PIPE ViPipe, const ISP_MODULE_CTRL_U *punModCtrl);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
punModCtrl	ISP functionmodule Control	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

• This interface is not currently supported on the dual-system SDK linux side.

[Example]

None.

[Related Topics]

• CVI_ISP_GetModuleControl

3.2.11. CVI_ISP_GetModuleControl

[Description]

Get ISP functionmodule Control.

[Syntax]

CVI_S32 CVI_ISP_GetModuleControl(VI_PIPE ViPipe, ISP_MODULE_CTRL_U *punModCtrl);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
punModCtrl	ISP functionmodule Control.	output

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

• This interface is not currently supported on the dual-system SDK linux side.

[Example]

None.

[Related Topics]

• CVI_ISP_SetModuleControl

3.2.12. CVI_ISP_GetVDTimeOut

[Description]

Get ISP interruptinformation.

[Syntax]

CVI_S32 CVI_ISP_GetVDTimeOut(VI_PIPE ViPipe, ISP_VD_TYPE_E_ enIspVDType, CVI_U32 u32MilliSec);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
enIspVDType	scenesynchronoussignalNo..	Input/Output
u32MilliSec	exceedwhenwheninterval, unit ms.	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

None.

[Example]

None.

[Related Topics]

None.

3.2.13. CVI_ISP_SensorRegCallBack

[Description]

ISP provide sensor Register callback interface.

[Syntax]

CVI_S32 CVI_ISP_SensorRegCallBack(VI_PIPE ViPipe, ISP_SNS_ATTR_INFO_S *pstSnsAttrInfo, ISP_SENSOR_REGISTER_S *pstRegister);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
pstSnsAttrInfo	to ISP Register Sensor attribute	Input/Output
pstRegister	Sensor Registerstructure pointer	Input/Output

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

• This interface is not currently supported on the dual-system SDK linux side.

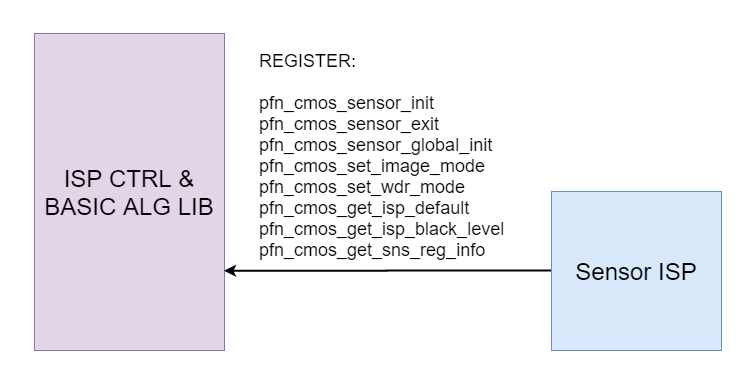

Figure 3.1 ISP libraryand sensor libraryinterval interface

[Example]

None.

[Related Topics]

• CVI_ISP_SensorUnRegCallback

3.2.14. CVI_ISP_SensorUnRegCallBack

[Description]

ISP provide sensor unregister callback interface.

[Syntax]

CVI_S32 CVI_ISP_SensorUnRegCallBack(VI_PIPE ViPipe, SENSOR_ID SensorId);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
SensorId	to ISP Register Sensor Id.	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

• This interface is not currently supported on the dual-system SDK linux side.

[Example]

None.

[Related Topics]

• CVI_ISP_SensorRegCallBack

3.2.15. CVI_ISP_AELibRegCallBack

[Description]

ISP provide AE libraryRegister callback interface.

[Syntax]

CVI_S32 CVI_ISP_AELibRegCallBack(VI_PIPE ViPipe, ALG_LIB_S *pstAeLib, ISP_AE_REGISTER_S *pstRegister);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
pstAeLib	AE librarystructure pointer	Input
pstRegister	AE libraryRegisterstructure pointer	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

• This interface is not currently supported on the dual-system SDK linux side.

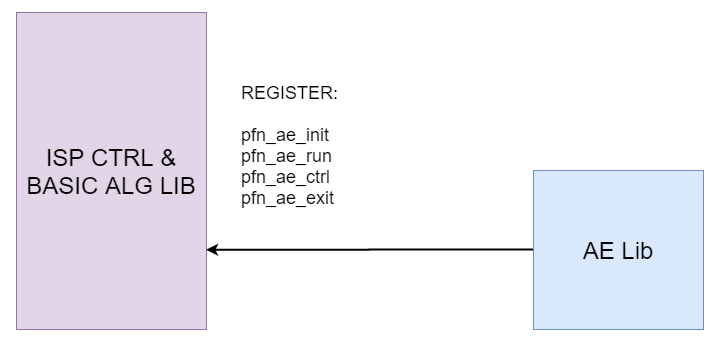

Figure 3.2 ISP libraryand AE libraryinterval interface

[Example]

None.

[Related Topics]

• CVI_ISP_AELibUnRegCallBack

3.2.16. CVI_ISP_AELibUnRegCallBack

[Description]

ISP provide AE libraryunregister callback interface.

[Syntax]

CVI_S32 CVI_ISP_AELibUnRegCallBack(VI_PIPE ViPipe, ALG_LIB_S *pstAeLib);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
pstAeLib	AE librarystructure pointer	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

• This interface is not currently supported on the dual-system SDK linux side.

[Example]

None.

[Related Topics]

• CVI_ISP_AELibRegCallBack

3.2.17. CVI_ISP_AWBLibRegCallBack

[Description]

ISP provide AWB libraryRegister callback interface.

[Syntax]

CVI_S32 CVI_ISP_AWBLibRegCallBack(VI_PIPE ViPipe, ALG_LIB_S *pstAwbLib, ISP_AWB_REGISTER_S *pstRegister);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
pstAwbLib	AWB librarystructure pointer	Input
pstRegister	AWB libraryRegisterstructure pointer	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

• This interface is not currently supported on the dual-system SDK linux side.

Figure 3.3 ISP libraryand AWB libraryinterval interface

[Example]

None.

[Related Topics]

• CVI_ISP_AWBLibUnRegCallBack

3.2.18. CVI_ISP_AWBLibUnRegCallBack

[Description]

ISP provide AWB libraryunregister callback interface.

[Syntax]

CVI_S32 CVI_ISP_AWBLibUnRegCallBack(VI_PIPE ViPipe, ALG_LIB_S *pstAwbLib);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
pstAwbLib	AWB librarystructure pointer	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

• This interface is not currently supported on the dual-system SDK linux side.

[Example]

None.

[Related Topics]

• CVI_ISP_AWBLibRegCallBack

3.2.19. CVI_ISP_AFLibRegCallBack

[Description]

ISP provide AF libraryRegister callback interface.

[Syntax]

CVI_S32 CVI_ISP_AFLibRegCallBack(VI_PIPE ViPipe, ALG_LIB_S *pstAfLib, ISP_AF_REGISTER_S *pstRegister);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
pstAfLib	AF librarystructure pointer	Input
pstRegister	AF libraryRegisterstructure pointer	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

• This interface is not currently supported on the dual-system SDK linux side.

Figure 3.4 ISP libraryand AF libraryinterval interface

[Example]

None.

[Related Topics]

• CVI_ISP_AFLibUnRegCallBack

3.2.20. CVI_ISP_AFLibUnRegCallBack

[Description]

ISP provide AF libraryunregister callback interface.

[Syntax]

CVI_S32 CVI_ISP_AFLibUnRegCallBack(VI_PIPE ViPipe, ALG_LIB_S *pstAfLib);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
pstAfLib	AF librarystructure pointer	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

• This interface is not currently supported on the dual-system SDK linux side.

[Example]

None.

[Related Topics]

• CVI_ISP_AFLibRegCallBack

3.2.21. CVI_ISP_SetBindAttr

[Description]

Set ISP libraryand 3A library, sensor bindclosesystem.

[Syntax]

CVI_S32 CVI_ISP_SetBindAttr(VI_PIPE ViPipe, const ISP_BIND_ATTR_S *pstBindAttr);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
pstBindAttr	bindstructure pointer	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

• This interface is not currently supported on the dual-system SDK linux side.

[Example]

None.

[Related Topics]

• CVI_ISP_GetBindAttr

3.2.22. CVI_ISP_GetBindAttr

[Description]

Get ISP libraryand 3A library, sensor bindclosesystem.

[Syntax]

CVI_S32 CVI_ISP_GetBindAttr(VI_PIPE ViPipe, ISP_BIND_ATTR_S *pstBindAttr);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
pstBindAttr	bindstructure pointer	output

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

• This interface does not support multiprocess operation.

• This interface is not currently supported on the dual-system SDK linux side.

[Example]

None.

[Related Topics]

• CVI_ISP_SetBindAttr

3.2.23. CVI_ISP_SetCtrlParam

[Description]

Set ISP Controlparameternumber.

[Syntax]

CVI_S32 CVI_ISP_SetCtrlParam(VI_PIPE ViPipe, const ISP_CTRL_PARAM_S *pstIspCtrlParam);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
pstIspCtrlParam	ISP Controlparameternumberstructure pointer	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

None.

[Example]

None.

[Related Topics]

• CVI_ISP_GetCtrlParam

3.2.24. CVI_ISP_GetCtrlParam

[Description]

Get ISP Controlparameternumber.

[Syntax]

CVI_S32 CVI_ISP_GetCtrlParam(VI_PIPE ViPipe, ISP_CTRL_PARAM_S *pstIspCtrlParam);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ViPipe No.	Input
pstIspCtrlParam	ISP Controlparameternumberstructure pointer.	output

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

None.

[Example]

None.

[Related Topics]

• CVI_ISP_SetCtrlParam

3.2.25. CVI_ISP_SetModParam

[Description]

Set ISP moduleparameternumber.

[Syntax]

CVI_S32 CVI_ISP_SetModParam(const ISP_MOD_PARAM_S *pstModParam);

[Parameters]

Parameter Name	Description	Input/Output
pstIspModParam	ISP moduleparameternumberstructure pointer	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

None.

[Example]

None.

[Related Topics]

• CVI_ISP_GetModParam

3.2.26. CVI_ISP_GetModParam

[Description]

Get ISP moduleparameternumber.

[Syntax]

CVI_S32 CVI_ISP_GetModParam( ISP_MOD_PARAM_S *pstModParam);

[Parameters]

Parameter Name	Description	Input/Output
pstIspCtrlParam	ISP moduleparameternumberstructure pointer	output

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

None.

[Example]

None.

[Related Topics]

• CVI_ISP_SetModParam

3.2.27. CVI_BIN_SetBinName

[Description]

See the documentation for details" Image Quality Debugging Tool User Guide " 4.1.2chaptersection.

3.2.28. CVI_BIN_GetBinName

[Description]

See the documentation for details" Image Quality Debugging Tool User Guide " 4.1.2chaptersection.

3.2.29. CVI_BIN_GetBinExtraAttr

[Description]

See the documentation for details" Image Quality Debugging Tool User Guide " 4.1.2chaptersection.

3.2.30. CVI_BIN_GetBinTotalLen

[Description]

See the documentation for details" Image Quality Debugging Tool User Guide " 4.1.2chaptersection.

3.2.31. CVI_BIN_ExportBinData

[Description]

See the documentation for details" Image Quality Debugging Tool User Guide " 4.1.2chaptersection.

3.2.32. CVI_BIN_ImportBinData

[Description]

See the documentation for details" Image Quality Debugging Tool User Guide " 4.1.2chaptersection.

3.2.33. CVI_BIN_SaveParamToBin

[Description]

See the documentation for details" Image Quality Debugging Tool User Guide " 4.1.2chaptersection.

3.2.34. CVI_BIN_LoadParamFromBin

[Description]

See the documentation for details" Image Quality Debugging Tool User Guide " 4.1.2chaptersection.

3.2.35. CVI_ISP_IrAutoRunOnce

[Description]

Runredoutsideautomaticswitchfunction.

[Syntax]

CVI_S32 CVI_ISP_IrAutoRunOnce(ISP_DEV IspDev, ISP_IR_AUTO_ATTR_S *pstIrAttr);

[Parameters]

Parameter Name	Description	Input/Output
IspDev	ISP deviceNo.	Input
pstIrAttr	redoutsideautomaticswitchattribute	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_comm_isp.h, cvi_isp.h

• Library File: libisp.so

[Note]

None.

[Example]

ISP_DEV  IspDev = 0;
ISP_IR_AUTO_ATTR_S   stIrAttr;

stIrAttr.bEnable = 1;
stIrAttr.u32Normal2IrIsoThr = 3200;
stIrAttr.u32Ir2NormalIsoThr = 100;
stIrAttr.u32RGMin = 256;
stIrAttr.u32RGMax = 512;
stIrAttr.u32BGMin = 256;
stIrAttr.u32BGMax = 512;
CVI_ISP_IrAutoRunOnce(IspDev, &stIrAttr);

[Related Topics]

None.

3.2.36. CVI_ISP_SetSmartInfo

[Description]

SetAIidentifyoutput (face, human shape, object) coordinatesgive AE performmeasurelight.

[Syntax]

CVI_S32 CVI_ISP_SetSmartInfo(VI_PIPE ViPipe, const ISP_SMART_INFO_S *pstSmartInfo, CVI_U8 TimeOut);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ISP deviceNo.	Input
pstSmartInfo	AE AIrecognitioncoordinatesinformationstructurepointer	Input
TimeOut	recognitioncoordinatesinformationnot yetmorenewframenumber, exceedthroughafterrestorenormalAEmode	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_ae.h

• Library File: libae.a

[Note]

None.

[Example]

//设定人脸在 raw domain坐标位置 (X, Y , W, H) =(0, 0, 100, 100)
//及 frame 的宽/高 1920/1080信息給 AE
//4帧未更新识别结果后恢复正常AE
VI_PIPE ViPipe = 0;
ISP_SMART_INFO_S stSmartInfo;

CVI_ISP_GetSmartInfo(ViPipe, &stSmartInfo);
stSmartInfo.stROI[0].bEnable = 1;
stSmartInfo.stROI[0].bAvailable = 1;
stSmartInfo.stROI[0].u8Num = 1;
stSmartInfo.stROI[0].u16PosX[0] = 0;
stSmartInfo.stROI[0].u16PosY[0] = 0;
stSmartInfo.stROI[0].u16Width[0] = 100;
stSmartInfo.stROI[0].u16Height[0] = 100;
stSmartInfo.stROI[0].u16FrameWidth = 1920;
stSmartInfo.stROI[0].u16FrameHeight = 1080;
CVI_ISP_SetSmartInfo(ViPipe, &stSmartInfo, 4);

[Related Topics]

• CVI_ISP_GetSmartInfo

3.2.37. CVI_ISP_GetSmartInfo

[Description]

GetAIidentifyoutput (face, human shape, object) coordinates.

[Syntax]

CVI_S32 CVI_ISP_GetSmartInfo(VI_PIPE ViPipe, ISP_SMART_INFO_S *pstSmartInfo);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ISP deviceNo.	Input
pstSmartInfo	AE AIrecognitioncoordinatesinformationstructurepointer	output

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_ae.h

• Library File: libae.a

[Note]

None.

[Example]

None.

[Related Topics]

• CVI_ISP_SetSmartInfo

3.2.38. CVI_ISP_SetStitchAttr

[Description]

SetISPstitching channelinformation, need togroupcombinesystemstatisticalvalueinformationandcalibrationinformation.

[Syntax]

CVI_S32 CVI_ISP_SetStitchAttr(VI_PIPE ViPipe, ISP_STITCH_ATTR_S *pstStitchAttr);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ISP deviceNo.	Input
pstStitchAttr	ISP stitchinginformationstructurepointer	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

None.

[Example]

None.

[Related Topics]

• CVI_ISP_GetStitchAttr

3.2.39. CVI_ISP_GetStitchAttr

[Description]

GetISPstitching channelinformation, need togroupcombinesystemstatisticalvalueinformationandcalibrationinformation.

[Syntax]

CVI_S32 CVI_ISP_GetStitchAttr(VI_PIPE ViPipe, ISP_STITCH_ATTR_S *pstStitchAttr);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ISP deviceNo.	Input
pstStitchAttr	ISP stitchinginformationstructurepointer	output

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

None.

[Example]

None.

[Related Topics]

• CVI_ISP_SetStitchAttr

3.2.40. CVI_ISP_StitchCalibartion

[Description]

calibrationGetrelativesamestitchinggroupeachchannel sensor andlensdifferenceratioexample

[Syntax]

CVI_S32 CVI_ISP_StitchCalibartion(VI_PIPE ViPipe, ISP_STITCH_ATTR_S *pstAttr, CVI_U8 chnNum);

[Parameters]

Parameter Name	Description	Input/Output
ViPipe	ISP deviceNo.	Input
pstAttr	ISP stitchinginformationstructurepointer	Input&output
chnNum	ISP stitchingcalibration channeltotalnumber	Input

[Return Value]

Return Value	Description
0	Success.
Non-zero	Failure, See Error Code.

[Requirements]

• Header File: cvi_isp.h

• Library File: libisp.a

[Note]

None.

[Example]

None.

[Related Topics]

• CVI_ISP_SetStitchAttr

• CVI_ISP_GetStitchAttr

3.3. Data Types

thisdocumentationinchangeamount, such asnot yetclearcorrectindicatesetValue Range, thenDefaultisData Typescorresponding Value Range. For exampleCVI_U8 Data Types changeamountThe value range is[0, 255]. thisdocumentationinchangeamount, such asnot yetclearcorrectindicatesetnumberdataprecision, thenDefaultis 1.

3.3.1. RECT_S

[Description]

Define cropwindowstart positionandimagewidthheight

[Definition]

xxx

[Members]

Member Name	Description
s32X	horizontaldirectionstart position
s32Y	verticalhistogramtostart position
u32Width	imagewidth
u32Height	imageheight

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.2. SIZE_S

[Description]

Define sensor output widthheight.

[Definition]

typedef struct _SIZE_S {
  CVI_U32 u32Width;
  CVI_U32 u32Height;
} SIZE_S;

[Members]

Member Name	Description
u32Width	Sensor outputwidth
u32Height	Sensor outputheight

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.3. ISP_BAYER_FORMAT_E

[Description]

Define InputISPimage Bayermatrixcolumn formattype

[Definition]

typedef enum _ISP_BAYER_FORMAT_E {
  BAYER_BGGR,
  BAYER_GBRG,
  BAYER_GRBG,
  BAYER_RGGB,
  //for RGBIR sensor
  BAYER_GRGBI = 8,
  BAYER_RGBGI,
  BAYER_GBGRI,
  BAYER_BGRGI,
  BAYER_IGRGB,
  BAYER_IRGBG,
  BAYER_IBGRG,
  BAYER_IGBGR,
  BAYER_BUTT
} ISP_BAYER_FORMAT_E;

[Members]

Member Name	Description
BAYER_XX	eachkindbayermatrixcolumn formattype, namestandardshowpixelusingwhatkindmethodarrangecolumn

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.4. WDR_MODE_E

[Description]

Define InputISPRunwhensensor Runmethod,

[Definition]

typedef enum _WDR_MODE_E {
  WDR_MODE_NONE = 0,
  WDR_MODE_BUILT_IN,
  WDR_MODE_QUDRA,

  WDR_MODE_2To1_LINE,
  WDR_MODE_2To1_FRAME,
  WDR_MODE_2To1_FRAME_FULL_RATE,

  WDR_MODE_3To1_LINE,
  WDR_MODE_3To1_FRAME,
  WDR_MODE_3To1_FRAME_FULL_RATE,
  WDR_MODE_4To1_LINE,
  WDR_MODE_4To1_FRAME,
  WDR_MODE_4To1_FRAME_FULL_RATE,

  WDR_MODE_MAX,
} WDR_MODE_E;

[Members]

Member Name	Description
WDR_MODE_NONE	linearmode.
WDR_MODE_BUILT_IN	Sensor synthesis WDR mode.
WDR_MODE_QUDRA	Qudra mode
WDR_MODE_2To1_LINE	2 framesynthesisline WDR mode.
WDR_MODE_2To1_FRAME	2 framesynthesisframe WDR mode.
WDR_MODE_2To1_FRAME_FULL_RATE	2 framesynthesisframe WDR allframeratemode.
WDR_MODE_3To1_LINE	3 framesynthesisline WDR mode.
WDR_MODE_3To1_FRAME	3 framesynthesisframe WDR mode.
WDR_MODE_3To1_FRAME_FULL_RATE	3 framesynthesisframe WDR allframeratemode.
WDR_MODE_4To1_LINE	4 framesynthesisline WDR mode.
WDR_MODE_4To1_FRAME	4 framesynthesisframe WDR mode.
WDR_MODE_4To1_FRAME_FULL_RATE	4 framesynthesisframe WDR allframeratemode.

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.5. ISP_PUB_ATTR_S

[Description]

Define ISP public attributes

[Definition]

typedef struct _ISP_PUB_ATTR_S {
  RECT_S stWndRect;
  SIZE_S stSnsSize;
  CVI_FLOAT f32FrameRate;
  ISP_BAYER_FORMAT_E enBayer;
  WDR_MODE_E enWDRMode;
  CVI_U8 u8SnsMode;
} ISP_PUB_ATTR_S;

[Members]

Member Name	Description
stWndRect	ISPoutput rect
stSnsSize	Sensor image size
f32FrameRate	Sensor framerate
enBayer	Sensor Bayerformat
enWDRMode	widthdynamicmode
u8SnsMode	useinperform SensorInitializeordercolumn select, inpartidentifyrateandframeraterelativeat the same time, configurationdifferent u8SnsModecorrespondingdifferent Initializeordercolumn; othercase, u8SnsMode Defaultconfigurationis0, canthrough stSnsSize and f32FrameRate performInitializeordercolumn select.

[Precautions]

None.

[Related Data Types and Interfaces]

• RECT_S

• SIZE_S

• ISP_BAYER_FORMAT_E

• WDR_MODE_E

• CVI_ISP_SetPubAttr

• CVI_ISP_GetPubAttr

3.3.6. ISP_FMW_STATE_E

[Description]

Define ISP firmware status.

[Definition]

typedef enum _ISP_FMW_STATE_E {
  ISP_FMW_STATE_RUN,
  ISP_FMW_STATE_FREEZE,
  ISP_FMW_STATE_BUTT
} ISP_FMW_STATE_E;

[Members]

Member Name	Description
ISP_FMW_STATE_RUN	FirmwarenormalRunstatus
ISP_FMW_STATE_FREEZE	Firmware frozenstatus

[Precautions]

None.

[Related Data Types and Interfaces]

• CVI_ISP_SetFMWState

• CVI_ISP_GetFMWState

3.3.7. ISP_MODULE_CTRL_U

[Description]

Define ISP functionmodule Control.

[Definition]

typedef union _ISP_MODULE_CTRL_U {
  CVI_U64 u64Key;
  struct {
    CVI_U64 bitBypassBlc : 1; /* RW;[0] */
    CVI_U64 bitBypassRlsc : 1; /* RW;[1] */
    CVI_U64 bitBypassFpn : 1; /* RW;[2] */
    CVI_U64 bitBypassDpc : 1; /* RW;[3] */
    CVI_U64 bitBypassCrosstalk : 1; /* RW;[4] */
    CVI_U64 bitBypassWBGain : 1; /* RW;[5] */
    CVI_U64 bitBypassDis : 1; /* RW;[6] */
    CVI_U64 bitBypassBnr : 1; /* RW;[7] */
    CVI_U64 bitBypassDemosaic : 1; /* RW;[8] */
    CVI_U64 bitBypassRbgcac : 1; /* RW;[9] */
    CVI_U64 bitBypassMlsc : 1; /* RW;[10] */
    CVI_U64 bitBypassCcm : 1; /* RW;[11] */
    CVI_U64 bitBypassFusion : 1; /* RW;[12] */
    CVI_U64 bitBypassDrc : 1; /* RW;[13] */
    CVI_U64 bitBypassGamma : 1; /* RW;[14] */
    CVI_U64 bitBypassDehaze : 1; /* RW;[15] */
    CVI_U64 bitBypassClut : 1; /* RW;[16] */
    CVI_U64 bitBypassCsc : 1; /* RW;[17] */
    CVI_U64 bitBypassDci : 1; /* RW;[18] */
    CVI_U64 bitBypassCa : 1; /* RW;[19] */
    CVI_U64 bitBypassPreyee : 1; /* RW;[20] */
    CVI_U64 bitBypassMotion : 1; /* RW;[21] */
    CVI_U64 bitBypass3dnr : 1; /* RW;[22] */
    CVI_U64 bitBypassYnr : 1; /* RW;[23] */
    CVI_U64 bitBypassCnr : 1; /* RW;[24] */
    CVI_U64 bitBypassCac : 1;  /*RW:[25]*/
    CVI_U64 bitBypassCa2 : 1;  /*RW:[26]*/
    CVI_U64 bitBypassYee : 1;  /*RW:[27]*/
    CVI_U64 bitBypassYcontrast : 1;  /*RW:[28]*/
    CVI_U64 bitBypassMono : 1;  /*RW:[29]*/
    CVI_U64 bitRsv : 34; /* H  ; [30:63] */
  };
} ISP_MODULE_CTRL_U;

[Members]

Member Name	Description
u64Key	structureenumeration wholeshapevalue
bitBypassXXX	eachmodulefunctionControlbit

[Precautions]

None.

[Related Data Types and Interfaces]

• CVI_ISP_SetModuleControl

• CVI_ISP_GetModuleControl

3.3.8. ISP_VD_TYPE_E

[Description]

Define andISP synchronousmessageNo.

[Definition]

typedef enum _ISP_VD_TYPE_E {
  ISP_VD_FE_START = 0,
  ISP_VD_FE_END,
  ISP_VD_BE_END,
  ISP_VD_MAX
} ISP_VD_TYPE_E;

[Members]

Member Name	Description
ISP_VD_FE_START	FE frame startmessageNo.
ISP_VD_FE_END	FE frame endmessageNo.
ISP_VD_BE_END	BE frame endmessageNo.

[Precautions]

None.

[Related Data Types and Interfaces]

• CVI_ISP_GetVDTimeOut

3.3.9. ISP_SNS_ATTR_INFO_S

[Description]

Define ISP sensor attribute.

[Definition]

typedef struct _ISP_SNS_ATTR_INFO_S {
  CVI_U32 eSensorId;
} ISP_SNS_ATTR_INFO_S;

[Members]

Member Name	Description
eSensorId	Sensor ID No..

[Precautions]

None.

[Related Data Types and Interfaces]

• CVI_ISP_SensorRegCallBack

3.3.10. ISP_CMOS_SENSOR_IMAGE_MODE_S

[Description]

Define ISP sensor imagemodeinformationattribute.

[Definition]

typedef struct _ISP_CMOS_SENSOR_IMAGE_MODE_S {

  CVI_U16 u16Width;

  CVI_U16 u16Height;

  CVI_FLOAT f32Fps;

  CVI_U8 u8SnsMode;

  CVI_U8 u8LaneNum;

  CVI_U8 u8EnableMaster;

} ISP_CMOS_SENSOR_IMAGE_MODE_S;

[Members]

Member Name	Description
u16Width	imagewidth
u16Height	imageheight
f32Fps	framerate
u8SnsMode	passsensedeviceworkoperationmode
u8LaneNum	MIPI channelnumber
u8EnableMaster	mainfromEnableflag

[Precautions]

None.

[Related Data Types and Interfaces]

• ISP_SENSOR_EXP_FUNC_S

3.3.11. ISP_CMOS_BLACK_LEVEL_S

[Description]

Define ISP sensor blackelectricalflatinformationattribute.

[Definition]

typedef struct _ISP_CMOS_BLACK_LEVEL_S {

  CVI_BOOL bUpdate;

  ISP_BLACK_LEVEL_ATTR_S blcAttr;

} ISP_CMOS_BLACK_LEVEL_S;

[Members]

Member Name	Description
bUpdate	morenewflag
blcAttr	blackelectricalflatattribute

[Precautions]

None.

[Related Data Types and Interfaces]

• ISP_SENSOR_EXP_FUNC_S

3.3.12. ISP_CMOS_DEFAULT_S

[Description]

Define ISP sensor Defaultnoisecalibrateattribute.

[Definition]

typedef struct _ISP_CMOS_DEFAULT_S {

  ISP_CMOS_NOISE_CALIBRATION_S stNoiseCalibration;

} ISP_CMOS_DEFAULT_S;

[Members]

Member Name	Description
stNoiseCalibration	noisecalibrateconfiguration

[Precautions]

None.

[Related Data Types and Interfaces]

• ISP_SENSOR_EXP_FUNC_S

3.3.13. ALG_LIB_S

[Description]

theuselibrary information.

[Definition]

typedef struct _ALG_LIB_S {
  CVI_S32 s32Id;
  CVI_CHAR acLibName[ALG_LIB_NAME_SIZE_MAX];
} ALG_LIB_S;

[Members]

Member Name	Description
s32Id	algorithm libraryactualexample Id.
acLibName	standardidentifyalgorithm libraryname charactersymbolarray.

[Precautions]

None.

[Related Data Types and Interfaces]

• CVI_ISP_SensorRegCallBack

• CVI_ISP_SensorUnRegCallBack

• CVI_ISP_AELibRegCallBack

• CVI_ISP_AELibUnRegCallBack

• CVI_ISP_AWBLibRegCallBack

• CVI_ISP_AWBLibUnRegCallBack

3.3.14. ISP_AE_REGISTER_S

[Description]

ISP provide AE libraryRegister callback interface.

[Definition]

typedef struct _ISP_AE_REGISTER_S {
  ISP_AE_EXP_FUNC_S stAeExpFunc;
} ISP_AE_REGISTER_S;

[Members]

Member Name	Description
stAeExpFunc	AE Register callback functionstructure.

[Precautions]

None.

[Related Data Types and Interfaces]

• ISP_AE_EXP_FUNC_S

• CVI_ISP_AELibRegCallBack

3.3.15. ISP_AE_EXP_FUNC_S

[Description]

Define AE callback functionstructure.

[Definition]

typedef struct _ISP_AE_EXP_FUNC_S {
  CVI_S32 (*pfn_ae_init)(VI_PIPE ViPipe, const ISP_AE_PARAM_S *pstAeParam);
  CVI_S32 (*pfn_ae_run)(VI_PIPE ViPipe, const ISP_AE_INFO_S *pstAeInfo, ISP_AE_RESULT_S *pstAeResult, CVI_S32 s32Rsv);
  CVI_S32 (*pfn_ae_ctrl)(VI_PIPE ViPipe, CVI_U32 u32Cmd, void *pValue);
  CVI_S32 (*pfn_ae_exit)(VI_PIPE ViPipe);
} ISP_AE_EXP_FUNC_S;

[Members]

Member Name	Description
pfn_ae_init	Initialize AE callback function pointer.
pfn_ae_run	Run AE callback function pointer.
pfn_ae_ctrl	Control AE internalstatus callback function pointer.
pfn_ae_exit	destroy AE callback function pointer.

[Precautions]

• call CVI_ISP_Init whenwillcallpfn_ae_initcallback function, usingInitializeAEalgorithm library.

• call CVI_ISP_Run whenwillcallpfn_ae_runcallback function, usingRunAEalgorithm library, calculateobtaintosensor exposure timeandgain, ISP digital gain.

• call CVI_ISP_Exit whenwillcallpfn_ae_exitcallback function, usingdestroyAEalgorithm library.

[Related Data Types and Interfaces]

• ISP_AE_REGISTER_S

3.3.16. ISP_AE_PARAM_S

[Description]

Define ISP providegiveAE Initializeparameternumberstructure.

[Definition]

typedef struct _ISP_AE_PARAM_S{
  SENSOR_ID SensorId;
  CVI_U8 u8WDRMode;
  CVI_U8 u8HDRMode;
  CVI_U16 u16BlackLevel;
  CVI_FLOAT f32Fps;
  ISP_BAYER_FORMAT_E enBayer;
  ISP_STITCH_ATTR_S stStitchAttr;
  CVI_S32 s32Rsv;
  ISP_3AWIN_CONFIG_S aeLEWinConfig[AE_MAX_NUM];
  ISP_3AWIN_CONFIG_S aeSEWinConfig;
}  ISP_AE_PARAM_S;

[Members]

Member Name	Description
SensorId	theRegister Sensor id.
u8WDRMode	widthdynamicmode, ISPtoAEprovidewidthdynamicmodeinformation.
u8HDRMode	HDRmode, ISP toAE provideHDRmodeinformation.
u16BlackLevel	blackelectricalflatvalue, 12bitprecision, ISP toAE provideblackelectricalflatinformation.
f32Fps	framerate, ISP toAEprovideframerateinformation.
enBayer	Sensor Bayer Pat tern, includeRGGB, GRBG, GBRG, BGGRfourkindformat.
stStitchAttr	stitchingmode, ISPtoAEprovidestitchingmodeinformation.
aeLEWinConfig	ISP toAE provideWDRlong exposure window configurationinformation.
aeSEWinConfig	ISP toAE provideWDRshort exposure window configurationinformation.

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.17. ISP_SMART_INFO_S

[Description]

Define ISP providegiveAE statistical informationstructure.

[Definition]

typedef struct _ISP_SMART_INFO_S
{
  ISP_SMART_ROI_S stROI[SMART_CLASS_MAX];
} ISP_SMART_INFO_S;

[Members]

Member Name	Description
stROI	facerecognitionorhuman shapedetectionregioninformation

[Precautions]

• currentonly supportsfacemodelandhuman shapemodeldetectionresult, stROIunderstandardis0whenisfacedetectionresult, understandardis1whenishuman shapedetectionresult

• AE willaccording toprovide facein raw positiontofindoutputfaceposition AE window , andusethis AE window brightnesstoexecuteline face AE measurelightstrategy

[Related Data Types and Interfaces]

None.

3.3.18. ISP_AE_INFO_S

[Description]

Define ISPprovidegiveAE statistical informationstructure.

[Definition]

typedef struct _ISP_AE_INFO_S {
  CVI_U32 u32FrameCnt;
  ISP_SMART_ROI_S  stSmartInfo;
  ISP_FE_AE_STAT_1_S *pstFEAeStat1[AE_MAX_NUM];
  ISP_FE_AE_STAT_2_S *pstFEAeStat2[AE_MAX_NUM];
  ISP_FE_AE_STAT_3_S *pstFEAeStat3[AE_MAX_NUM];
  ISP_FE_AE_STITCH_STAT_3_S *pstFEAeStiStat;
  ISP_BE_AE_STAT_1_S *pstBEAeStat1;
  ISP_BE_AE_STAT_2_S *pstBEAeStat2;
  ISP_BE_AE_STAT_3_S *pstBEAeStat3;
  ISP_BE_AE_STITCH_STAT_3_S *pstBEAeStiStat;
  ISP_3AWIN_CONFIG_S aeLEWinConfig[AE_MAX_NUM];
  ISP_3AWIN_CONFIG_S aeSEWinConfig;
} ISP_AE_INFO_S;

[Members]

Member Name	subMember Name	Description
u32FrameCnt		frame accumulateaddstatisticalnumber
stSmartInfo		pleaseReferenceISP_SMART_INFO_S interfacedescription
pstFEAeStat1	u32PixelCount	systemstatistical pixelpointtotalnumber.
	u32PixelWeight	systemstatistical bandweightpixelpointtotalnumber.
	au3 2HistogramMemArray	256-bin histogram statistical information array
pstFEAeStat2	u16GlobalAvgR	globalR componentaveragevalue
	u16GlobalAvgGr	globalGrcomponentaveragevalue
	u16GlobalAvgGb	globalGbcomponentaveragevalue
	u16GlobalAvgB	globalB componentaveragevalue
pstFEAeStat3	au16ZoneAvg	partregionintervalR, Gr, Gb, Bcomponentaveragevalue
pstFEAeStiStat	au16ZoneAvg	stitchingmodeunderstitchingafterpartregionintervalR, Gr, Gb, Bcomponentaveragevalue
pstBEAeStat1	bStable	Currently unused
pstBEAeStat2	bStable	Currently unused
pstBEAeStat3	bStable	Currently unused
pstBEAeStiStat	bStable	Currently unused
aeLEWinConfig	winWidth	AE window width
	winHeight	AE window height
	winXOffset	AE window start positionhorizontaldirectionbiasmovevalue
	winYOffset	AE window start positionverticalhistogramtobiasmovevalue
	winXNum	AE horizontal direction window number
	winYNum	AE vertical direction window number

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.19. ISP_AE_RESULT_S

[Description]

Define AE libraryReturngiveISP configurationregisterstructure.

[Definition]

typedef struct _ISP_AE_STAT_RESULT_S {
  CVI_U32 u32IntTime[VI_MAX_PIPE_NUM];
  CVI_U32 u32IspDgain;
  CVI_U32 u32Again;
  CVI_U32 u32Dgain;
  CVI_U32 u32Iso;
  CVI_U8 u8AERunInterval;
  CVI_BOOL bPirisValid;
  CVI_S32 s32PirisPos;
  CVI_U32 u32PirisGain;
  ISP_FSWDR_MODE_E enFSWDRMode;
  CVI_U32 au32WDRGain[4];
  CVI_U32 u32HmaxTimes;
  ISP_AE_STAT_ATTR_S stStatAttr;
  ISP_DCF_UPDATE_INFO_S stUpdateInfo;
  CVI_U32 u32ExpRatio;
  CVI_S16 s16CurrentLV;
  CVI_U32 u32AvgLuma;
  CVI_U8 u8MeterFramePeriod;
  CVI_BOOL bStable;
  CVI_FLOAT fBvStep;
  CVI_U32 u32BlcIso;
  CVI_U32 u32IspDgainSF;
  CVI_U32 u32AgainSF;
  CVI_U32 u32DgainSF;
  CVI_U32 u32IsoSF;
  CVI_U32 u32BlcIsoSF;
  CVI_FLOAT fEvRatio[2];
} ISP_AE_RESULT_S;

[Members]

Member Name	Description
u32IntTime	exposure time
u32IspDgain	ISP digital gain, 10 bit precision
u32Again	Sensor analog gain, 10 bit precision
u32Dgain	Sensor digital gain, 10 bit precision
u32Iso	AE totalgainvalue , 2 xwhenis100 * 2 =200
u8AERunInterval	AEalgorithmRun intervalinterval
bPirisValid	Piriswhethervalid flag
s32PirisPos	Piris stepelectricalmachine position, Value RangeandspecificPiris lensrelated
u32PirisGain	Piris apertureequivalentincrease benefit, Value RangeandspecificPirislensrelated
enFSWDRMode	WDR synthesismode. 0 indicatesnormal multi-frame synthesis WDR mode; 1 indicateslong-frame mode; 2 indicatesautomatic long-frame mode.
au32WDRGain	compatibleparameternumber, Currently unused
u32HmaxTimes	Se nsorcorrespondingreadoutputoneline wheninterval, unit: ns
stStatAttr	compatibleparameternumber, Currently unused
stUpdateInfo	useinpasspassAE relatedDCFinformation
u32ExpRatio	WDR modewhen, long/short exposure exposureratiovalue, 64 is 1x
s16CurrentLV	AE currentlyestimatecalculate environmentbrightness, numberthe larger the valueindicatesenvironmentthe morebright
u32AvgLuma	currentlyimage brightness
u8MeterFramePeriod	AE exposuretakes effectperiod
bStable	current AE convergencestatuswhetherstable
fBvStep	currentlyimage brightnessdistancetargetbrightness step
u32BlcIso	long exposurecorresponding BLCReference totalgainvalue,thisgainonlycontainsensor simulation/digital gain, notcontainISPdigital gain
u32IspDgainSF	WDR mode, short exposureISP digital gain, 10 bit precision
u32AgainSF	WDR mode, short exposureSensor analog gain, 10 bit precision
u32DgainSF	WDR mode, short exposureSensor digital gain, 10 bit precision
u32IsoSF	WDR mode, AE totalgainvalue
u32BlcIsoSF	shortexposure BLC Reference totalgainvalue,thisgainonlycontainsensor simulation/digital gain, notcontainISPdigital gain
fEvRatio	AE currentdetectandbeforeonedetect exposuredifferenceratiorate

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.20. ISP_SENSOR_EXP_FUNC_S

[Description]

Define sensor callback functionstructure.

[Definition]

typedef struct _ISP_SENSOR_EXP_FUNC_S {
  CVI_VOID (*pfn_cmos_sensor_init)(VI_PIPE ViPipe);
  CVI_VOID (*pfn_cmos_sensor_exit)(VI_PIPE ViPipe);
  CVI_VOID (*pfn_cmos_sensor_global_init)(VI_PIPE ViPipe);
  CVI_S32 (*pfn_cmos_set_image_mode)(VI_PIPE ViPipe, ISP_CMOS_SENSOR_IMAGE_MODE_S *pstSensorImageMode);
  CVI_S32 (*pfn_cmos_set_wdr_mode)(VI_PIPE ViPipe, CVI_U8 u8Mode);

  /* the algs get data which is associated with sensor, except 3a */
  CVI_S32 (*pfn_cmos_get_isp_default)(VI_PIPE ViPipe, ISP_CMOS_DEFAULT_S *pstDef);
  CVI_S32 (*pfn_cmos_get_isp_black_level)(VI_PIPE ViPipe, ISP_CMOS_BLACK_LEVEL_S *pstBlackLevel);
  CVI_S32 (*pfn_cmos_get_sns_reg_info)(VI_PIPE ViPipe, ISP_SNS_SYNC_INFO_S *pstSnsRegsInfo);

  /* the function of sensor set pixel detect */
//CVI_VOID (*pfn_cmos_set_pixel_detect)(VI_PIPE ViPipe, bool bEnable);
} ISP_SENSOR_EXP_FUNC_S;

[Members]

Member Name	Description
pfn_cmos_sensor_init	Initialize sensor callback function pointer.
pfn_cmos_sensor_exit	sensor callbackexitfunctionpointer.
pfn_cmos_sensor_global_init	Initializeglobalchangeamount callback function pointer.
pfn_cmos_set_image_mode	Setpartidentifyrateandframerateswitch callback function pointer.
pfn_cmos_set_wdr_mode	Set wdrmode callback function pointer.
pfn_cmos_get_isp_default	Get ISP basicalgorithm initialvalue callback function pointer.
pfn_cmos_get_isp_black_level	Get sensor blackelectricalflatvalue callback function pointer, supportaccording tosensor gaindynamicAdjustblackelectricalflatvalue
pfn_cmos_get_sns_reg_info	Get sensor registerinformation callback function pointer, useinimplementinsidekernelstateconfiguration AE information
pfn_cmos_set_pixel_detect	Setdefectivepointcorrectionopenclose callback function pointer

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.21. ISP_SENSOR_REGISTER_S

[Description]

ISP provide sensor Register callback interface.

[Definition]

typedef struct bmISP_SENSOR_REGISTER_S {
  ISP_SENSOR_EXP_FUNC_S stSnsExp;
} ISP_SENSOR_REGISTER_S;

[Members]

Member Name	Description
stSnsExp	Sensor Register callback functionstructure.

[Precautions]

None.

[Related Data Types and Interfaces]

• ISP_SENSOR_EXP_FUNC_S

• CVI_ISP_SensorRegCallBack

3.3.22. ISP_AWB_EXP_FUNC_S

[Description]

Define AWB callback functionstructure.

[Definition]

typedef struct _ISP_AWB_EXP_FUNC_S {
  CVI_S32 (*pfn_awb_init)(VI_PIPE ViPipe, const ISP_AWB_PARAM_S *pstAwbParam);
  CVI_S32 (*pfn_awb_run)(VI_PIPE ViPipe, const ISP_AWB_INFO_S *pstAwbInfo, ISP_AWB_RESULT_S *pstAwbResult,CVI_S32 s32Rsv);
  CVI_S32 (*pfn_awb_ctrl)(VI_PIPE ViPipe, CVI_U32 u32Cmd, CVI_VOID * pValue);
  CVI_S32 (*pfn_awb_exit)(VI_PIPE ViPipe);
} ISP_AWB_EXP_FUNC_S;

[Members]

Member Name	Description
pfn_awb_init	Initialize AWB callback function pointer
pfn_awb_run	Run AWB callback function pointer.
pfn_awb_ctrl	Control AWB internalstatus callback function pointer.
pfn_awb_exit	destroy AWB callback function pointer

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.23. ISP_AWB_REGISTER_S

[Description]

Define AWB Registerstructure.

[Definition]

typedef struct _ISP_AWB_REGISTER_S {
  ISP_AWB_EXP_FUNC_S stAwbExpFunc;
} ISP_AWB_REGISTER_S;

[Members]

Member Name	Description
stAwbExpFunc	AWBRegistercallback function structure

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.24. ISP_AWB_PARAM_S

[Description]

Define ISPgiveAWBInitializeparameternumberstructure

[Definition]

typedef struct _ISP_AWB_PARAM_S {
  SENSOR_ID SensorId;
  CVI_U8 u8WDRMode;
  CVI_U8 u8AWBZoneRow;
  CVI_U8 u8AWBZoneCol;
  CVI_U8 u8AWBZoneBin;
  ISP_STITCH_ATTR_S stStitchAttr;
  CVI_U16 u16AWBWidth;
  CVI_U16 u16AWBHeight;
  CVI_S8 s8Rsv;
} ISP_AWB_PARAM_S;

[Members]

Member Name	Description
SensorId	toISPRegister Sensor ID
u8WDRMode	widthdynamicmode
u8AWBZoneRow	AWBsystemstatisticallinenumber
u8AWBZoneCol	AWBsystemstatisticalcolumnnumber
u8AWBZoneBin	AWBsystemstatisticalbrightnessnumber
stStitchAttr	stitchingmessageinformationstructure
u16AWBWidth	AWBalgorithm imagewidth
u16AWBHeight	AWBalgorithm imageheight
s8Rsv	reservedparameternumber

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.25. ISP_AWB_STAT_1_S

[Description]

Define AWBsystemstatisticalvaluemessageinformationstructure

[Definition]

typedef struct _ISP_AWB_STAT_1_S {
  CVI_U16 u16MeteringAwbAvgR;
  CVI_U16 u16MeteringAwbAvgG;
  CVI_U16 u16MeteringAwbAvgB;
  CVI_U16 u16MeteringAwbCountAll;
} ISP_AWB_STAT_1_S;

[Members]

Member Name	Description
u16MeteringAwbAvgR	Bayer domainglobalsystemstatisticalinwhite point Rcomponent
u16MeteringAwbAvgG	Bayer domainglobalsystemstatisticalinwhite point Gcomponent
u16MeteringAwbAvgB	Bayer domainglobalsystemstatisticalinwhite point B component
u16MeteringAwbCountAll	Bayer domainglobalsystemstatisticalinwhite point number

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.26. ISP_AWB_STAT_RESULT_S

[Description]

Define AWBsystemstatisticalvaluemessageinformationstructure

[Definition]

typedef struct _ISP_AWB_STAT_RESULT_S {
  CVI_U16 *pau16ZoneAvgR;
  CVI_U16 *pau16ZoneAvgG;
  CVI_U16 *pau16ZoneAvgB;
  CVI_U16 *pau16ZoneCount;
} ISP_AWB_STAT_RESULT_S;

[Members]

Member Name	Description
pau16ZoneAvgR	Bayerdomainpartregionsystemstatisticalvalueinwhite pointRcomponentarray start position
pau16ZoneAvgG	Bayerdomainpartregionsystemstatisticalvalueinwhite pointGcomponentarray start position
pau16ZoneAvgB	Bayerdomainpartregionsystemstatisticalvalueinwhite pointBcomponentarray start position
pau16ZoneCount	Bayerdomainpart regionsystemstatisticalvalueinwhite pointnumberarray start position

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.27. ISP_AWB_INFO_S

[Description]

Define ISPprovidegiveAWBsystemstatisticalvaluemessageinformation structure

[Definition]

typedef struct _ISP_AWB_INFO_S {
  CVI_U32 u32FrameCnt;
  ISP_SMART_ROI_S  stSmartInfo;
  ISP_AWB_STAT_1_S * pstAwbStat1[ISP_CHANNEL_MAX_NUM];
  ISP_AWB_STAT_RESULT_S stAwbStat2[ISP_CHANNEL_MAX_NUM];
  CVI_U8 u8AwbGainSwitch;
  CVI_U32 au32WDRWBGain[ISP_BAYER_CHN_NUM];
  CVI_U32 u32IsoNum;
  CVI_S16 s16LVx100;
  CVI_FLOAT fBVstep;
}ISP_AWB_INFO_S;

[Members]

Member Name	Description
u32FrameCnt	frame accumulateaddstatisticalnumber
stSmartInfo	specialregion information(givelicense plateorisfaceuse), pleaseReferenceISP_SMART_INFO_S interfacedescription
pstAwbStat1	AWBStatistical Information1
stAwbStat2	AWBStatistical Information2
u8AwbGainSwitch	reserved,has no effect
au32WDRWBGain	reserved,has no effect
u32IsoNum	currentimage ISOgain
s16LVx100	currentimage brightnessvaluex100
fBVstep	currentimageAEconvergence differencevalue

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.28. ISP_SMART_ROI_S

[Description]

Define ISPprovidegive AE facerecognitionorhuman shaperecognitionregionstatistical information structure

[Definition]

typedef struct _ISP_SMART_ROI_S {
  CVI_BOOL bEnable;
  CVI_BOOL bAvailable;
  CVI_U8  u8Luma;
  CVI_U8  u8Num;
  CVI_U16  u16PosX[SMART_MAX_NUM];
  CVI_U16  u16PosY[SMART_MAX_NUM];
  CVI_U16  u16Width[SMART_MAX_NUM];
  CVI_U16  u16Height[SMART_MAX_NUM];
  CVI_U16  u16FrameWidth;
  CVI_U16  u16FrameHeight;
} ISP_SMART_ROI_S;

[macro]

# define SMART_MAX_NUM (3)

[Members]

Member Name	Description
bEnable	modelwhetherEnable
bAvailable	modelwhetherhavecanuse detectionresult
u8Luma	compatibleparameternumber,Currently unused
u16PosX[SMART_MAX_NUM]	detectionoutput facepositioncorrespondingin raw on X coordinates
u16PosY[SMART_MAX_NUM]	detectionoutput facepositioncorrespondingin raw on Y coordinates
u16Width[SMART_MAX_NUM]	detectionoutput facepositioncorrespondingin raw on width
u16Height[SMART_MAX_NUM]	detectionoutput facepositioncorrespondingin raw on height
u16FrameWidth	Raw frame width
u16FrameHeight	Raw frame height

[Precautions]

• currentonly supportsfacemodelandhuman shapemodeldetectionresult, stROIunderstandardis0whenisfacedetectionresult, understandardis1whenishuman shapedetectionresult

• AE willaccording toprovide facein raw positiontofindoutputfaceposition AE window , andusethis AE window brightnesstoexecuteline face AE measurelightstrategy

[Related Data Types and Interfaces]

None.

3.3.29. ISP_AWB_RAW_STAT_ATTR_S

[Description]

Define AWB libReturngiveISP configurationcachestructure

[Definition]

typedef struct _ISP_AWB_RAW_STAT_ATTR_S {
  CVI_BOOL bStatCfgUpdate;
  CVI_U16 u16MeteringWhiteLevelAwb;
  CVI_U16 u16MeteringBlackLevelAwb;
  CVI_U16 u16MeteringCrRefMaxAwb;
  CVI_U16 u16MeteringCbRefMaxAwb;
  CVI_U16 u16MeteringCrRefMinAwb;
  CVI_U16 u16MeteringCbRefMinAwb;
} ISP_AWB_RAW_STAT_ATTR_S;

[Members]

Member Name	Description
bStatCfgUpdate	reserved,has no effect
u16MeteringWhiteLevelAwb	reserved,has no effect
u16MeteringBlackLevelAwb	reserved,has no effect
u16MeteringCrRefMaxAwb	reserved,has no effect
u16MeteringCbRefMaxAwb	reserved,has no effect
u16MeteringCrRefMinAwb	reserved,has no effect
u16MeteringCbRefMinAwb	reserved,has no effect

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.30. ISP_AWB_RESULT_S

[Description]

Define AWB libReturngive ISP configurationcache structure

[Definition]

typedef struct _ISP_AWB_RESULT_S {
  CVI_U32 au32WhiteBalanceGain[ISP_BAYER_CHN_NUM];
  CVI_U16 au16ColorMatrix[CCM_MATRIX_SIZE];
  CVI_U32 u32ColorTemp;
  CVI_U8 u8Saturation[4];
  ISP_AWB_RAW_STAT_ATTR_S stRawStatAttr;
  CVI_BOOL bStable;
  CVI_U8 u8AdjCASaturation;
  CVI_U8 u8AdjCASatLuma;
} ISP_AWB_RESULT_S;

[Members]

Member Name	Description
au32WhiteBalanceGain	AWB li bcalculateto R,Gr,Gb,Bcolorchannelgain
au16ColorMatrix	reserved,has no effect
u32ColorTemp	currentinAWBestimatecalculate color temperature
u8Saturation	currentsaturation
stRawStatAttr	reserved,has no effect
bStable	whetherconvergence
u8AdjCASaturation	saturationcalculateresult
u8AdjCASatLuma	brightnesscalculateresult

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.31. ISP_BIND_ATTR_S

[Description]

Define ISPlibraryandSensor, 3Alibraryofintervalbindclosesystem structure.

[Definition]

typedef struct _ISP_BIND_ATTR_S {
  CVI_S32 sensorId;
  ALG_LIB_S stAeLib;
  ALG_LIB_S stAfLib;
  ALG_LIB_S stAwbLib;
} ISP_BIND_ATTR_S;

[Members]

Member Name	Description
SensorId	RegisterSensor Id.
stAeLib	AE librarystructure.
stAwbLib	AF librarystructure.
stAfLib	AWB librarystructure.

[Precautions]

None.

[Related Data Types and Interfaces]

• CVI_ISP_SetBindAttr

• CVI_ISP_GetBindAttr

3.3.32. ISP_CTRL_PARAM_S

[Description]

Define ISP Controlparameternumberstructure.

[Definition]

typedef struct _ISP_CTRL_PARAM_S {
  CVI_U32 u32AEStatIntvl;
  CVI_U32 u32AWBStatIntvl;
  CVI_U32 u32AFStatIntvl;
  CVI_U32 u32ProcParam;
  CVI_U32 u32ProcLevel;
  CVI_U32 u32UpdatePos;
  CVI_U32 u32IntTimeOut;
  CVI_U32 u32PwmNumber;
  CVI_U32 u32PortIntDelay;
} ISP_CTRL_PARAM_S;

[Members]

Member Name	Description
u32AEStatIntvl	ISP 3A AEstatistical information update frequency, unitisframe Value Range: (0,0xffffffff]
u32AWBStatIntvl	ISP 3A AWBstatistical information update frequency, unitisframe Value Range: (0,0xffffffff]
u32AFStatIntvl	ISP 3A AFstatistical information update frequency, unitisframe Value Range: (0,0xffffffff]
u32ProcParam	ISP collectinformation collectfrequency, unitisframe, The default value is30, thisvaluethe moreheight, ISP CPUoccupyuseratethenthe morelow Value Range: (0,0xffffffff]
u32ProcLevel	I SP procprintLevel, Levelis0,procfunctionDisable, levelis1, precisionsimpleinformation, levelis2, relativelymultipleinformation, levelis3, non-oftenmultipleinformation (willhandle3Asystemstatisticalvaluealsoprintoutputto)
u32UpdatePos	currentlycvitekonly supportsinframeopenstartconfigurationsensorregister, The default value is0
u32IntTimeOut	indicatesinterruptexceedwhen wheninterval (ms) . currentlycviteknohaveuse
u32PwmNumber	indicates PWM No.. currentlycviteknohaveuse
u32PortIntDelay	indicates Port interruptdelaywhenwheninterval

[Precautions]

None.

[Related Data Types and Interfaces]

• CVI_ISP_SetCtrlParam

• CVI_ISP_GetCtrlParam

3.3.33. ISP_MOD_PARAM_S

[Description]

Define ISP moduleparameternumberstructure.

[Definition]

typedef struct _ISP_MOD_PARAM_S {
  CVI_U32 u32IntBotHalf;
} ISP_MOD_PARAM_S;

[Members]

Member Name	Description
u32IntBotHalf	indicates ISP interruptprocessingwhethercaptureuseunderhalfpartmachinecontrol, The default value is0,currentlycvitekonly supports (readstatistical informationandconfigurationsensor and ISPsame stepregister) ininterrupt serviceprogramincomplete;

[Precautions]

None.

[Related Data Types and Interfaces]

• CVI_ISP_SetModParam

• CVI_ISP_GetModParam

3.3.34. ISP_IR_AUTO_ATTR_S

[Description]

Define redoutsideautomaticswitchattribute.

[Definition]

typedef struct _ISP_IR_AUTO_ATTR_S
{
  CVI_BOOL bEnable;
  CVI_U32 u32Normal2IrIsoThr;
  CVI_U32 u32Ir2NormalIsoThr;
  CVI_U32 u32RGMax;
  CVI_U32 u32RGMin;
  CVI_U32 u32BGMax;
  CVI_U32 u32BGMin;
  ISP_IR_STATUS_E enIrStatus;
  ISP_IR_SWITCH_STATUS_E enIrSwitch;
} ISP_IR_AUTO_ATTR_S;

[Members]

Member Name	Description
bEnable	redoutsideautomaticswitchEnable. CVI_FALSE: Disable CVI_TRUE: Enable.
u32Normal2IrIsoThr	fromnormalstatusswitchtoredoutsidestatus ISOthreshold. whenactualtakes effect ISOlargeinthis thresholdwhen, systemsystemneed toswitchtoredoutsidestatus. Value Range: [0, 0xFFFFFFFF].
u32Ir2NormalIsoThr	fromredoutsidestatusswitchtonormalstatus ISOthreshold. whenactualtakes effect ISOsmallinthis thresholdwhen, systemsystemneed toswitchtonormalstatus. Value Range: [0, 0xFFFFFFFF].
u32RGMax	redoutsidestatusunder R/Gmaximumvalue. actualimage R/Glargeinthisparameternumberwhen, systemsystemneed toswitchtonormalstatus. 4.8format. Value Range: [0, 0xFFF].
u32RGMin	redoutsidestatusunder R/Gminimumvalue. actualimage R/Gsmallinthisparameternumberwhen, systemsystemneed toswitchtonormalstatus. 4.8format. Value Range: [0, u32RGMax].
u32BGMax	redoutsidestatusunder B/Gmaximumvalue. actualimage B/Glargeinthisparameternumberwhen, systemsystemneed needswitchto normalstatus. 4.8format. Value Range: [0,0xFFF].
u32BGMin	redoutsidestatusunder B/Gminimumvalue. actual actualimage B/Gsmallinthisparameternumberwhen, systemsystemneed needswitchtonormalstatus. 4.8format. Value Range: [0, u32BGMax].
enIrStatus	devicecurrent redoutsidestatus. shouldconfiguration isdeviceactual redoutsidestatus, need touserprotect verifystatus correctproperty.
enIrSwitch	device redoutsideswitchstatus, isonlyread.

[Precautions]

None.

[Related Data Types and Interfaces]

None.

3.3.35. ISP_STITCH_ATTR_S

[Description]

Define ISP stitchingparameternumberstructure.

[Definition]

typedef struct ISP_STITCH_ATTR_T {
CVI_BOOL enable;
CVI_BOOL bMainPipe;
CVI_BOOL bCalibEnable;
CVI_BOOL bCombineSts;
CVI_U8  u8CombChnSum;
CVI_U8  u8CombChn;
CVI_U8  u8Group;
CVI_U32 u32CalibLumaRatio;
CVI_U32 u32CalibRGainRatio;
CVI_U32 u32CalibBGainRatio;
} ISP_STITCH_ATTR_S;

[Members]

Member Name	Description
enable	stitchingfunction enable CVI_FALSE: Disable CVI_TRUE: Enable
bMainPipe	whetherismainchannel, whenISPstitchingEnableafter, fromchannelAE, AWB resultparameternumberandmainchannelkeepconsistent. CVI_FALSE: fromchannel CVI_TRUE: mainchannel
bCombineSts	whethergroupcombinesystemstatisticalvalue, groupcombinesystemstatisticalvalueafterAE, AWBcalculatewhencantake into accountSetgroupcombine channel. CVI_FALSE: notgroupcombine CVI_TRUE: groupcombine
bCalibEnable	whetherEnablecalibrationparameternumber. CVI_FALSE: notusecalibrationparameternumber CVI_TRUE: Enablecalibrationparameternumber
u8CombChnSum	groupcombinesystemstatisticalvaluechanneltotalnumber. Value Range: [0, 0x6]
u8CombChn	currentgroupcombinesystemstatisticalvaluechannelNo. Value Range: [0, 0x6]
u8Group	stitchinggroupnumber. Value Range: [0,0x2]
u32CalibLumaRatio	currentchannelandotherchannelbrightnessdifferenceratioexample (1024is1) Value Range: [0, 0x1000]
u32CalibRGainRatio	currentchannelandotherchannelRGaindifferenceratioexample (1024is1) Value Range: [0, 0x1000]
u32CalibBGainRatio	currentchannelandotherchannelBGaindifferenceratioexample (1024is1) Value Range: [0, 0x1000]

[Precautions]

None.

[Related Data Types and Interfaces]

None.
