6. Partition Modification

6.1. Partition Table Configuration

CV184x SDKthepartition tableineachpartitionAdd is build/Kconfig.partitions configuration item, notsameEVB defconfigfilerecordcorrespondingFlash eachpartitiondefault configurationvalue.

executedefconfigcommandselectEVBwhen, firstparse build/Kconfig.partitions file, thenloaddefconfigfileindefault configuration, Finally, generatexmlfileshapeformpartition table, saveis build/partitions.xml. withcv1842hp_wevb_0014a_spinorisexample:

$ source build/envsetup_soc.sh

$ defconfig cv1842hp_wevb_0014a_spinor

$ file build/boards/cv184x/cv1842hp_wevb_0014a_spinor/partition/partition_spinor.xml
build/boards/cv184x/cv1842hp_wevb_0014a_spinor/partition/partition_spinor.xml: symbolic link to ../../../../partitions.xml

$ cat build/partitions.xml
<?xml version="1.0" ?>
<physical_partition type="spinor">
<!--This is an auto-generated file. DO NOT EDIT manually.-->
<partition label="fip" size_in_kb="2048" readonly="false" file="fip_spl.bin" mountpoint="" type=""/>
<partition label="2nd" size_in_kb="1024" readonly="false" file="yoc.bin" mountpoint="" type=""/>
<partition label="BOOT" size_in_kb="3072" readonly="false" file="boot.spinor" mountpoint="" type=""/>
<partition label="MISC" size_in_kb="128" readonly="false" file="logo.jpg" mountpoint="" type=""/>
<partition label="ENV" size_in_kb="64" readonly="false" file="" mountpoint="" type=""/>
<partition label="ENV_BAK" size_in_kb="64" readonly="false" file="" mountpoint="" type=""/>
<partition label="ROOTFS" size_in_kb="4352" readonly="false" file="rootfs.spinor" mountpoint="" type=""/>
<partition label="DATA" size_in_kb="1024" readonly="false" file="data.spinor" mountpoint="/mnt/data" type="jffs2"/>
</physical_partition>

6.2. Partition Table Interpretation

The partition table labels mean:

  1. physical_partitiOn type: flash type.

  2. partition label: partition name.

  3. size_in_kb: partition size (in KB) .

  4. file: name of the referenced image file.

  5. type: (inpartition labelfieldin) file system format.

  6. mountpoint: partition mount path.

CV184x SDK generates the following image files. Each file represents a different partition:

  • FIP : Bootloader/U-Boot partition

  • CV184X CA3 usingFSBL+UBOOT architecture, Finally, openpacketafteralsoreuse(FIP)filename, convenientlateruse.

  • 2nd(dual-system) : Yun on Processor (YOC) partition containing

  • BOOT : Partition for Linux Kernel partition

  • MISC : Boot Logo partition

  • ROOTFS : root file system partition

  • SYSTEM: CVITEK librariespartition containing

  • DATA : usethisdatapartition

Note: 2ndpartitionisdualsystemspecialhaspartition, onlyindualsystemenvironmentunderstorein

6.3. Modify Partition

  • Modify the Partition Table

After selecting an EVB, use the menuconfig command to modify build/partitions.xml Partition Table.

  1. need tomodifyalreadyhaspartitionsize, candirectlyconnectmodifycorrespondingconfigureitemvalue, see the preceding sections for partition-size alignment;

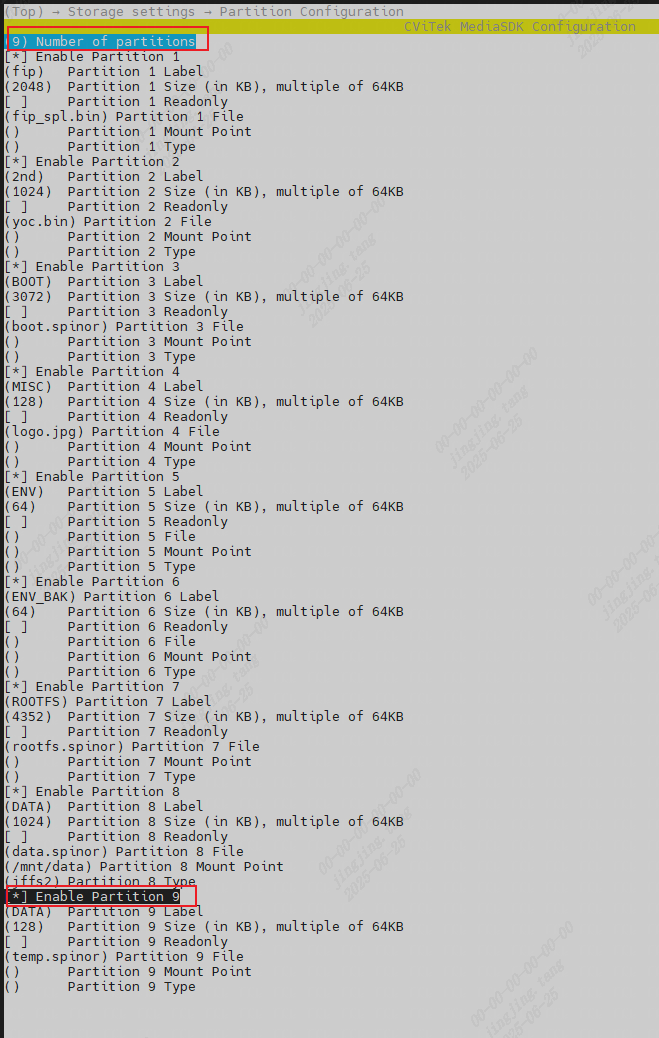

  2. When adding or removing partitions, firstmodifypartitionnumber, Then, , clear the partitions that are not needed, ororsetnewpartition, as followsFigure shown, save the settings after modification; exiting the menu automatically updates to build/partitions.xml Partition Table:

  3. When lastpartitionsizedeletenotfill inwhen, generatepartition tablewhenwillautomaticcalculateremaining sizeoperationislastpartitionsize.

_images/image19.png

for example, onFigure savemodifyafter, morenewas follows:

$ cat build/partitions.xml
<?xml version="1.0" ?>
<physical_partition type="spinor">
<!--This is an auto-generated file. DO NOT EDIT manually.-->
<partition label="fip" size_in_kb="2048" readonly="false" file="fip_spl.bin" mountpoint="" type=""/>
<partition label="2nd" size_in_kb="1024" readonly="false" file="yoc.bin" mountpoint="" type=""/>
<partition label="BOOT" size_in_kb="3072" readonly="false" file="boot.spinor" mountpoint="" type=""/>
<partition label="MISC" size_in_kb="128" readonly="false" file="logo.jpg" mountpoint="" type=""/>
<partition label="ENV" size_in_kb="64" readonly="false" file="" mountpoint="" type=""/>
<partition label="ENV_BAK" size_in_kb="64" readonly="false" file="" mountpoint="" type=""/>
<partition label="ROOTFS" size_in_kb="4352" readonly="false" file="rootfs.spinor" mountpoint="" type=""/>
<partition label="DATA" size_in_kb="1024" readonly="false" file="data.spinor" mountpoint="/mnt/data" type="jffs2"/>
<partition label="DATA" size_in_kb="128" readonly="false" file="temp.spinor" mountpoint="" type=""/>
</physical_partition>

  • Specify a Partition Table

To use a specified partition table, modify the partition-table symbolic link in the EVB configuration directory build/boards/cv184x/cv1842hp_wevb_0014a_spinor/partition/partition_spinor.xml
